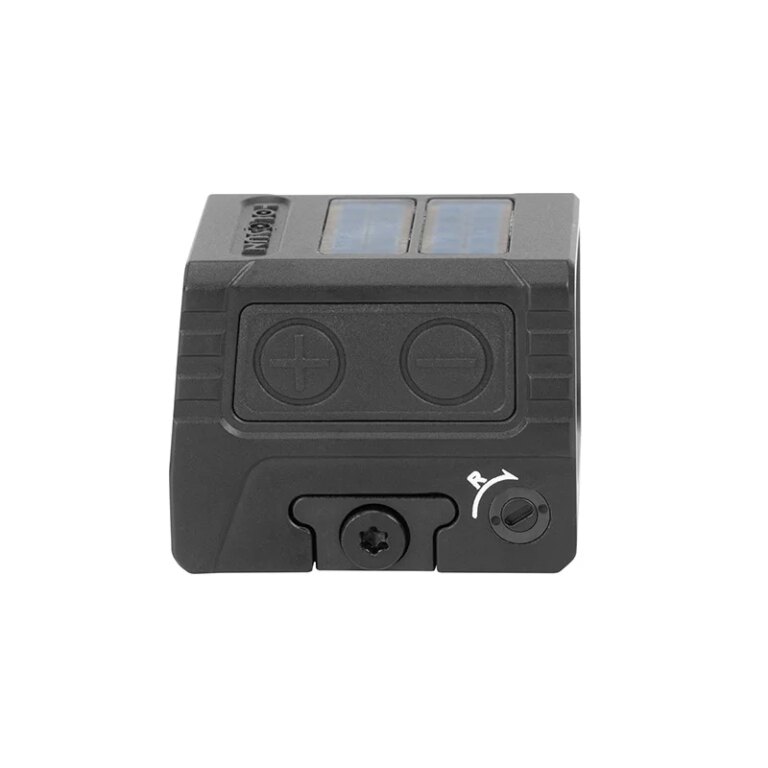

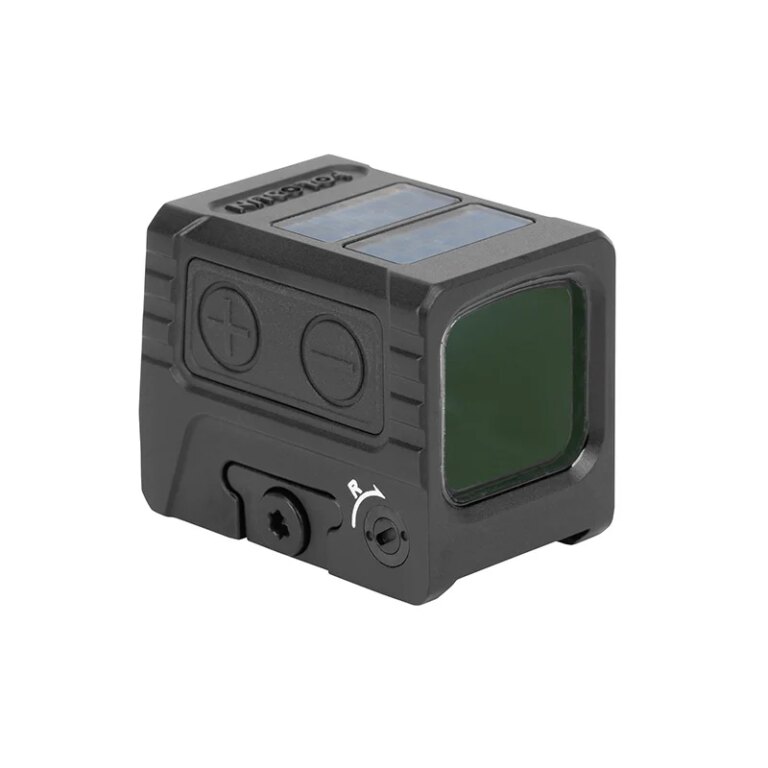

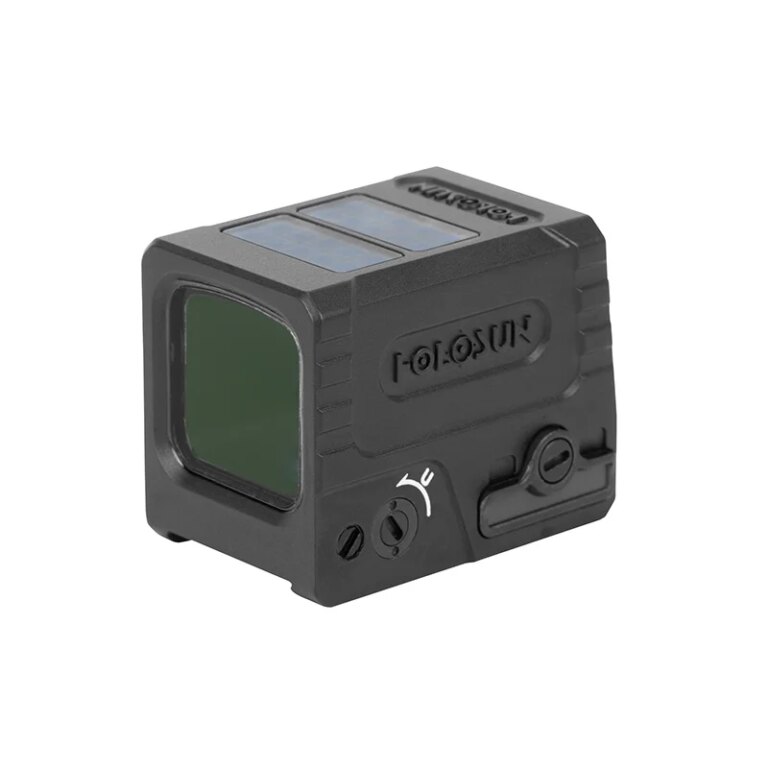

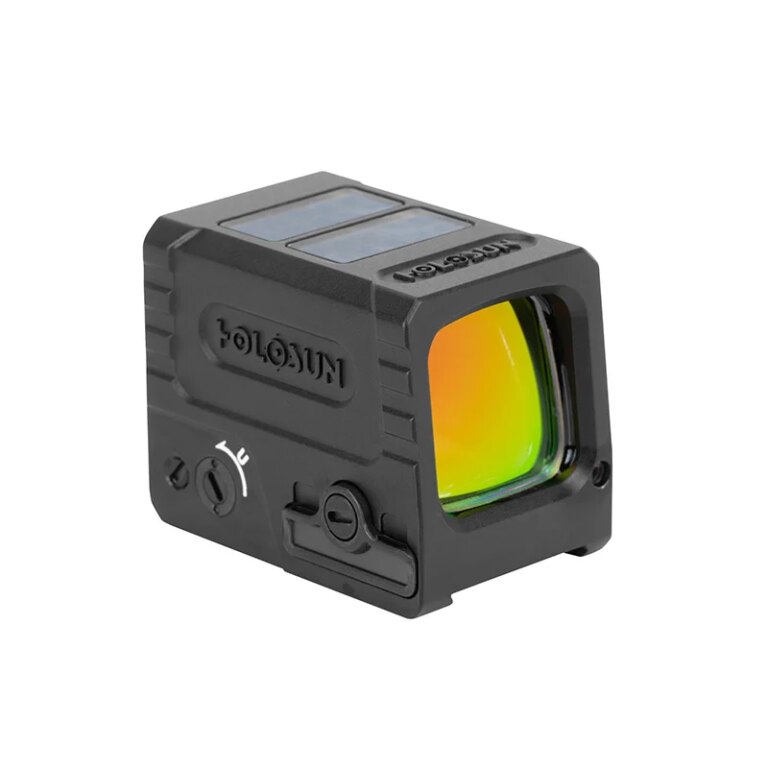

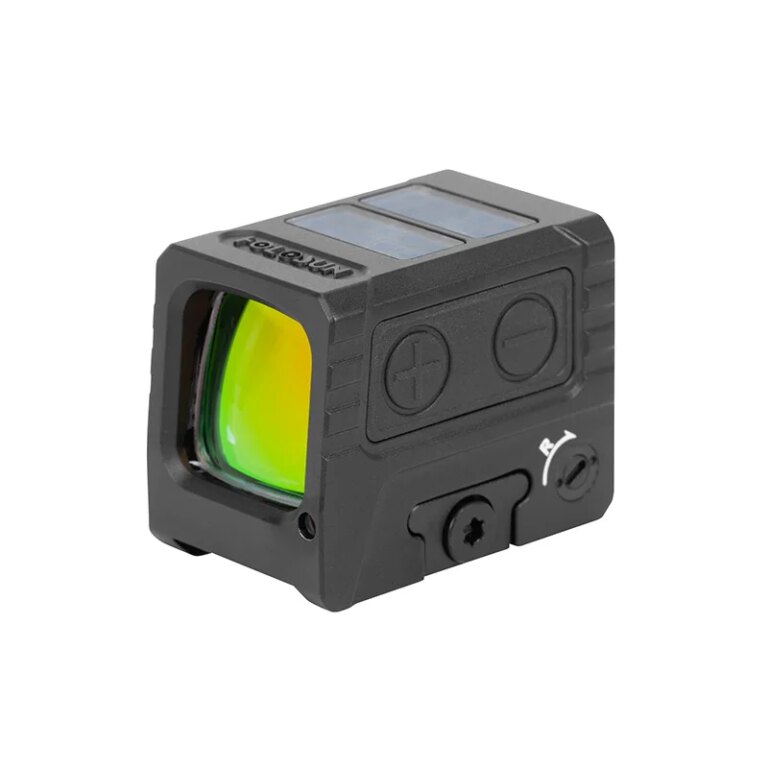

Holosun® AEMS MICRO RD Enclosed Pistol Reflex Sight

The Holosun AEMS MICRO RD is a compact enclosed pistol reflex sight with a red Multi-Reticle System. It allows the user to select a 2 MOA dot, a 32 MOA circle, or a circle-dot combination. Its enclosed housing protects the emitter from moisture, dust, and debris, while automatic brightness control, Solar Failsafe, Shake Awake, memory, and Lockout Mode support reliable operation. The housing is machined from 7075-T6 aluminum.

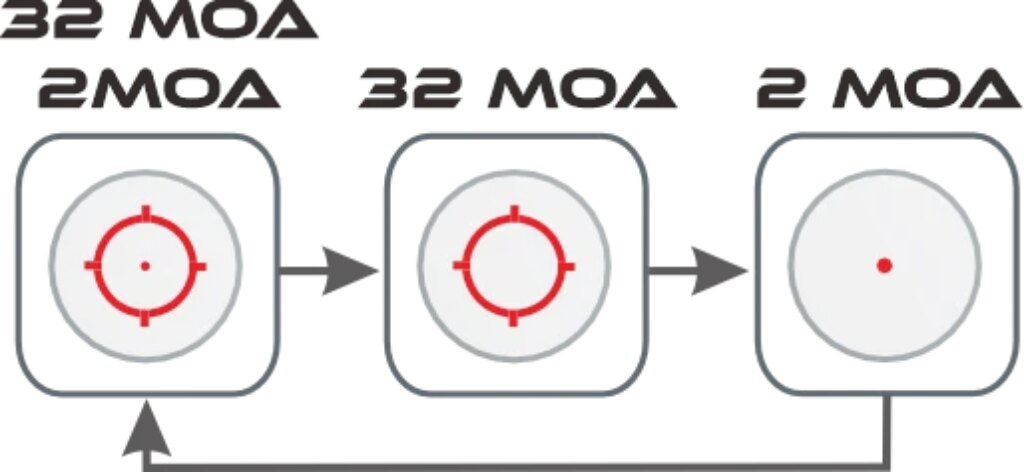

Selectable Multi-Reticle System

The Multi-Reticle System offers three reticle options: a precise 2 MOA dot, a 32 MOA circle, or a combination of both. This allows the sight picture to be adapted for precise aiming or faster target acquisition.

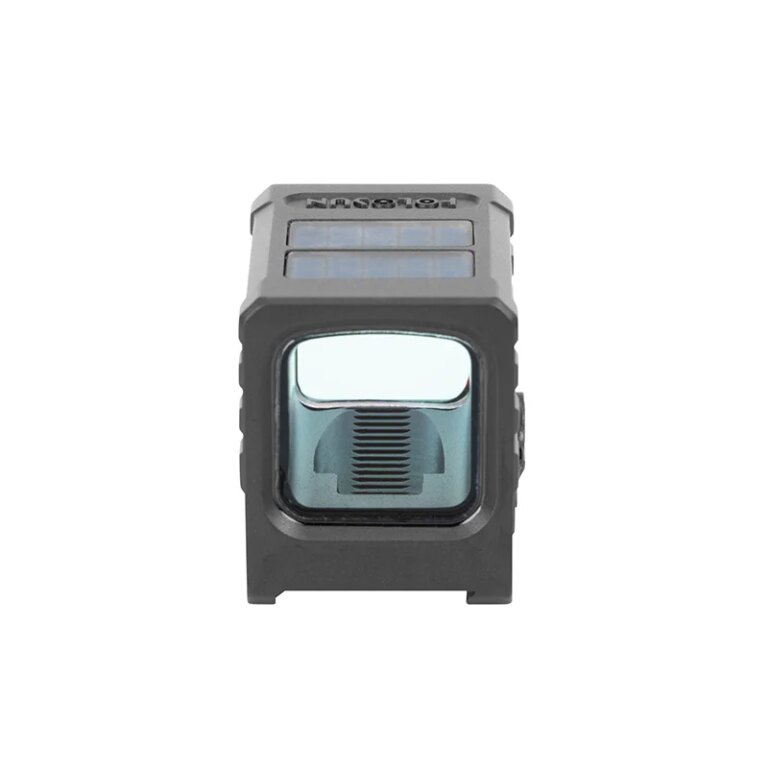

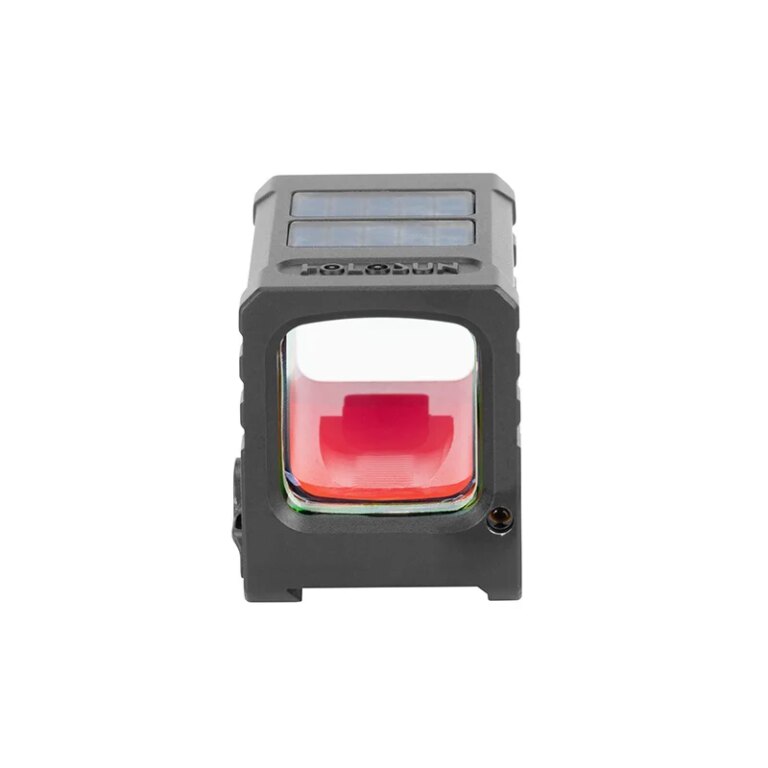

Compact Enclosed Design

The fully enclosed construction protects the emitter from moisture, dust, and debris that could obstruct the light path in an open reflex sight. The viewing window measures 0.71 × 0.71", approximately 18 × 18 mm. The sight measures approximately 38.1 × 25.4 × 30.5 mm and weighs approximately 59.5 g.

Automatic and Manual Brightness Control

A forward-facing light sensor automatically adjusts the reticle intensity to changing ambient light conditions. Manual adjustment is also available, offering 8 daytime brightness settings and 4 settings compatible with night vision devices. Lockout Mode prevents accidental changes to the selected settings.

Solar Failsafe and Shake Awake

Solar Failsafe uses the integrated solar panel to supplement battery power. Shake Awake places the electronics into sleep mode after a period of inactivity and reactivates the sight when movement is detected. The memory function restores the previously selected settings.

Side-Loading Battery with Up to 100,000 Hours of Runtime

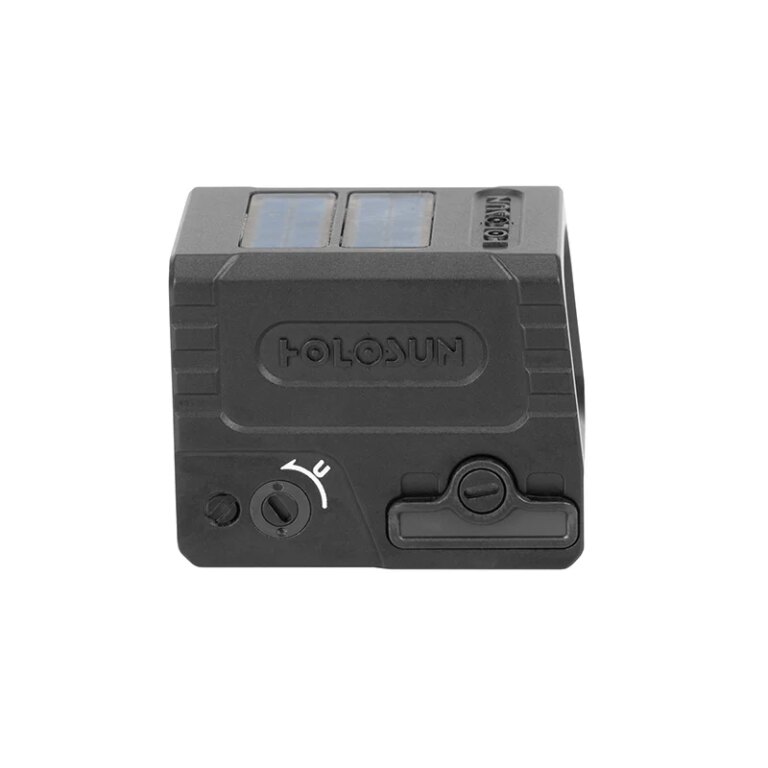

The sight is powered by a CR1620 battery housed in a side-loading tray, allowing battery replacement without removing the optic from the pistol. Depending on the selected settings, battery life can reach up to 100,000 hours.

7075-T6 Aluminum Housing

The housing is machined from 7075-T6 aluminum and protected by a hard-anodized finish. The sight is rated IPX8 for water resistance and withstands vibration loads of up to 5,000 G. Elevation and windage adjustments provide a range of ±30 MOA, with each click corresponding to 1 MOA.

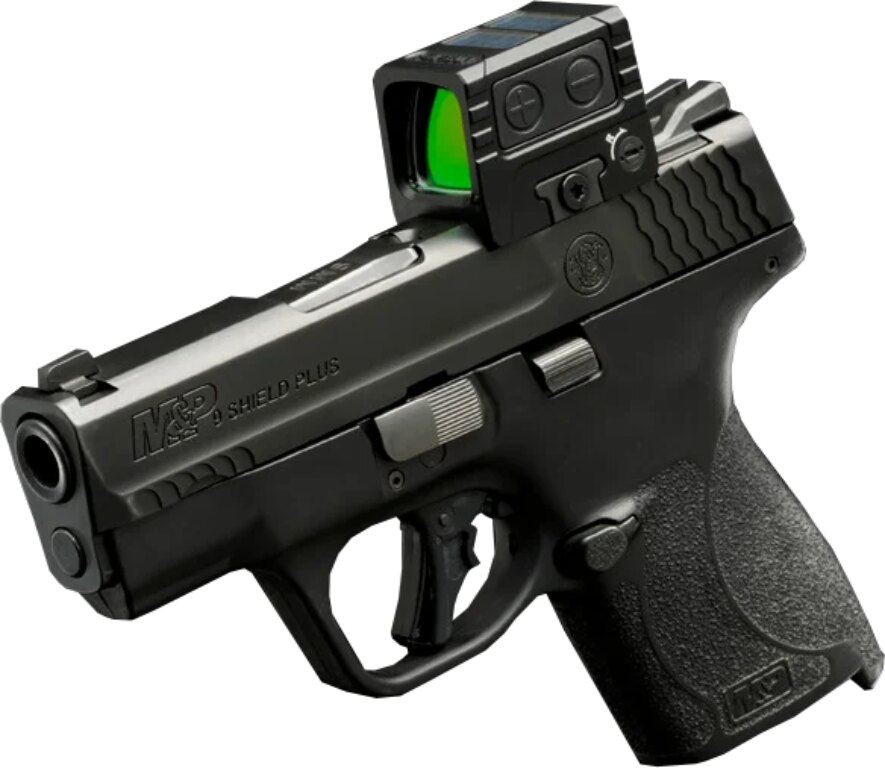

RMSc Adapter Included

The sight uses the proprietary AEMS-MICRO mounting interface. An RMSc-to-AEMS-MICRO adapter plate is included for installation on compatible RMSc mounting interfaces. The package also contains a multi-tool, lens cloth, user manual, and warranty card.

Key Features:

• Compact enclosed pistol reflex sight
• Protected emitter
• Red Multi-Reticle System
• Selectable 2 MOA dot, 32 MOA circle, or circle-dot reticle
• Viewing window measuring 0.71 × 0.71" / approximately 18 × 18 mm
• Automatic brightness control
• 8 daytime and 4 night vision-compatible brightness settings
• Solar Failsafe
• Shake Awake
• Memory function
• Lockout Mode
• Side-loading CR1620 battery
• Battery life of up to 100,000 hours
• 7075-T6 aluminum housing
• Hard-anodized finish
• IPX8 water-resistance rating
• Vibration resistance up to 5,000 G
• 1 MOA adjustment per click
• Elevation and windage adjustment range of ±30 MOA
• Dimensions approximately 38.1 × 25.4 × 30.5 mm
• Weight approximately 59.5 g
• RMSc-to-AEMS-MICRO adapter plate included
