A-CUT and Aimpoint COA: How Glock Is Changing Red Dot Mounting

Mounting a red dot on a pistol has become standard practice. What still varies significantly, however, is how the optic is integrated into the firearm. A-CUT and Aimpoint COA introduce a solution that eliminates adapter plates, lowers the optic closer to the bore axis, and delivers a more mechanically integrated system. In this article, we’ll take a closer look at how it works and what it brings in real-world use.

What Is A-CUT and Aimpoint COA: How the New Mounting System Works

If you’ve been following developments in the shooting community, you’ve likely come across the terms A-CUT and Aimpoint COA. They’re increasingly associated with newer Glock models, yet their actual meaning isn’t always immediately clear.

A-CUT and Aimpoint COA represent a new design approach introduced by Glock in collaboration with Aimpoint in 2025, first presented at SHOT Show. Since then, the system has been gradually introduced on selected pistol models. Importantly, this is not just another red dot or another iteration of an “optics-ready” platform.

👉 It reflects a shift in how a red dot is mounted to a pistol—and how the mounting interface and optic are designed to function as a single, integrated system.

Building on our previous article on Glock Gen6 and our piece exploring why Glock has earned its reputation, we’ll break down what A-CUT and Aimpoint COA actually are, how they work, and how they differ from conventional mounting solutions.

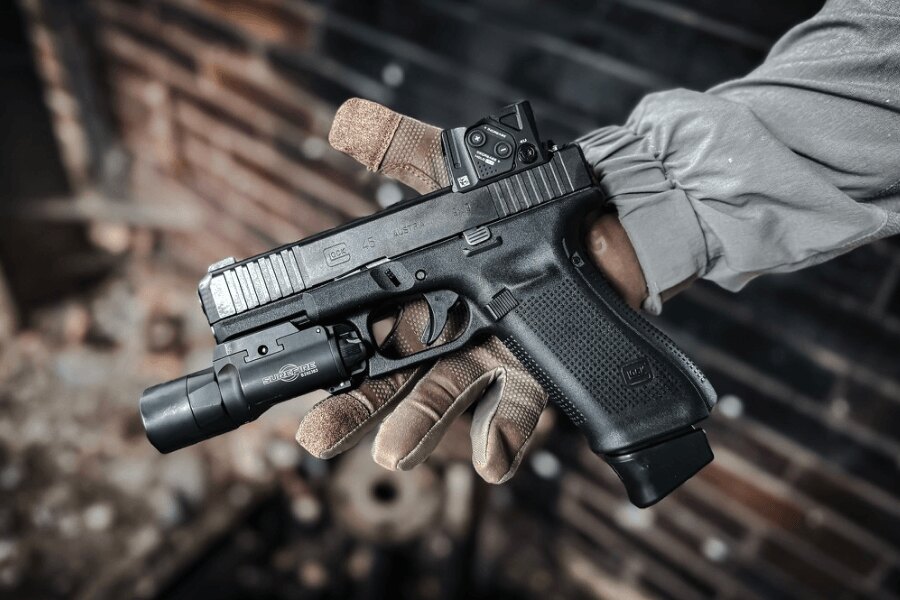

A modern Glock 45 setup featuring the Aimpoint COA red dot. The system supports fast and intuitive target acquisition in both range shooting and everyday carry scenarios.

Limitations of Optics-Ready Systems: Plates, Height, and Compatibility

Red dots on pistols have become standard. Most manufacturers now offer so-called “optics-ready” variants, typically built around footprints such as RMR or RMSc.

In practice, however, this often involves:

• the use of adapter plates,
• managing compatibility between the optic and the firearm,
• and compromises in overall mounting height.

A typical example is the Glock MOS system. It is a proven and reliable solution, but it also introduces an additional interface between the optic and the slide, effectively raising the optic higher than ideal.

This brings several practical drawbacks:

• less intuitive presentation and dot acquisition,
• the need for taller backup iron sights,
• increased dependence on the quality of the plate and mounting hardware.

For range or recreational use, these limitations are usually manageable.

For EDC or duty use, however, a solution that is:

• simpler,
• lower,
• and mechanically more robust

makes considerably more sense.

👉 This is exactly the gap A-CUT aims to address by eliminating the inherent weaknesses of traditional optics-ready systems.

Glock × Aimpoint: The Development of A-CUT and COA

On one side was Glock, looking for a more integrated way to mount a red dot directly to the pistol—without relying on additional interfaces.
On the other was Aimpoint, aiming to develop a compact enclosed optic suitable not only for full-size pistols, but also for smaller, everyday carry platforms.

The shared objective was to create a system that:

• eliminates the need for adapter plates,
• allows the optic to sit as low as possible relative to the bore axis,
• maintains high durability under sustained use,
• and makes sense in real-world application—not just on the range.

The result of this collaboration is a pair of components designed to work together:

• Aimpoint COA (Closed Optic Assembly) – a new compact enclosed red dot,
• A-CUT – a dedicated mounting interface machined directly into the slide.

These are not standalone components, but parts of a single, integrated system. Their interdependence is what allows the platform to be simpler, lower, and mechanically more coherent than conventional optics-ready solutions.

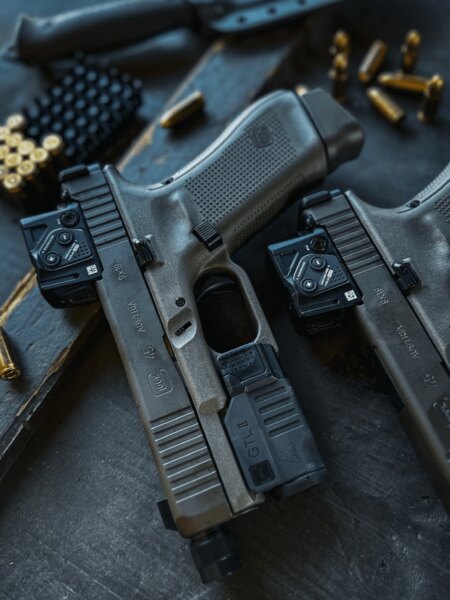

Two Glock 45 pistols equipped with the Aimpoint COA red dot using the A-CUT interface. The low-profile mounting without an adapter plate is immediately noticeable. Photo: Rigad

Aimpoint COA: An Enclosed Red Dot for Real-World Use

While A-CUT defines how the optic is mounted to the firearm, Aimpoint COA represents the optic itself—designed from the ground up to function as part of a unified system.

This is not simply a scaled-down version of existing models. COA was purpose-built as a compact enclosed pistol optic, with a focus on durability, simplicity, and performance in real-world conditions—not just on the range.

Enclosed Design and Its Advantages

Aimpoint COA is an enclosed red dot, meaning the emitter is sealed within the housing and protected from external elements.

This provides clear advantages in scenarios such as:

• exposure to dust or debris,
• rain, moisture, or adverse weather conditions,
• everyday carry, where the firearm is routinely exposed to contaminants.

Compared to open-emitter designs, COA offers a higher level of reliability in less-than-ideal environments. This is precisely why enclosed optics are increasingly preferred for EDC and duty applications.

Compact Design with an Unusually Large Window

At first glance, COA appears compact and relatively minimal in size. This is largely due to its construction—not a “tube within a housing,” but a single, integrated unit.

Thanks to thinner side walls, however, the optic provides a larger viewing window than its external dimensions would suggest.

In practical terms, this translates to:

• improved situational awareness,
• faster dot acquisition,
• more natural tracking during shooting.

The result is a more open sight picture that approaches the feel of open-emitter optics—without their inherent drawbacks.

Technical Specifications of Aimpoint COA

In terms of specifications, COA delivers what is expected from a modern pistol-mounted red dot:

• Dot size: 3.5 MOA
• Brightness settings: 12 levels4 for night vision8 for daylight use
• 4 for night vision
• 8 for daylight use
• Battery life: up to approximately 50,000 hours under typical settings
• Controls: side-mounted buttons
• Battery: side-loading, no need to remove the optic

A notable feature is its brightness management. When set to a high brightness level, the optic gradually steps down to a more sustainable setting to preserve battery life over time.

Protection Against Unintended Adjustments

The control interface is designed with everyday carry in mind.

• the first button press acts as an unlock,
• subsequent presses adjust brightness or power settings.

This significantly reduces the risk of accidental changes during carry.

👉 In practice, this means greater confidence that the optic will be set correctly when you draw.

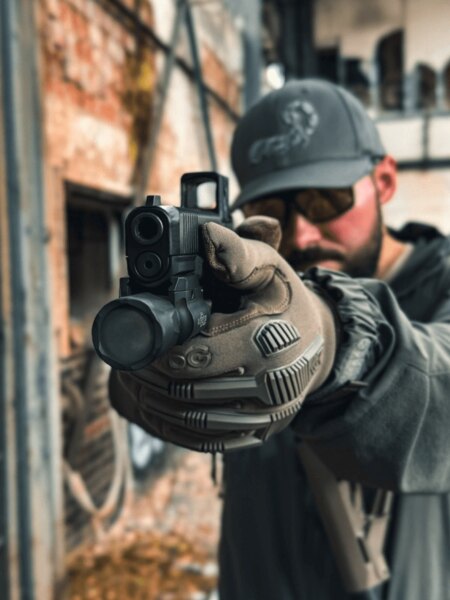

Aimpoint COA in use during live aiming. The enclosed design proves especially beneficial in real-world conditions and everyday carry. Photo: Rigad

A-CUT: How the New Mounting System Works

While Aimpoint COA defines the optic itself, A-CUT defines how that optic interfaces with the firearm. This is where the most significant departure from conventional “optics-ready” solutions takes place. A-CUT introduces a different mechanical approach to how the optic is seated in the slide and how forces are managed during operation.

A-CUT Is Not Just Another Slide Cut

At first glance, A-CUT may appear to be just another variation of an optic cut. In reality, it represents a fundamentally different approach.

In conventional systems, the optic is primarily secured by screws, often in combination with an adapter plate. These components absorb a significant portion of the forces generated during slide cycling.

A-CUT approaches this differently.

It’s not simply about attaching an optic to the slide. What matters is how the optic is mechanically seated and how forces are transferred during firing.

Mounting Principle of the A-CUT System

The A-CUT mounting system combines precise mechanical engagement with secondary fixation:

• the front portion of the optic interfaces directly with a recess in the slide,
• the rear of the optic is supported by a dedicated rear interface,
• the rear sight is integrated into the mounting system,
• screws serve primarily as a retention method rather than the primary load-bearing element.

The key advantage of this design:

👉 forces generated during slide movement are not primarily transferred into the screws, but into the slide itself. This significantly reduces stress on the mounting hardware and results in a more mechanically sound system overall.

Lower Optic Position

Because A-CUT eliminates the need for an adapter plate, the optic can be mounted directly into the slide and positioned significantly lower than in conventional setups.

This results in:

• a lower optic position relative to the bore axis,
• closer alignment with the natural line of sight.

In practical terms, this improves:

• presentation and initial dot acquisition,
• performance in dynamic shooting,
• transitions between targets.

The optic feels more “natural” in use and requires less adjustment from the shooter.

Co-Witness Without Tall Sights

Another practical benefit of the lower mounting position is how it works with iron sights.

• the system allows the use of standard-height sights,
• iron sights minimally obstruct the sight picture,
• yet remain fully usable as a backup aiming solution.

👉 In the event of an optic failure, there is no need to rely on excessively tall “suppressor-height” sights or adapt shooting habits.

Recommended product

Glock 47 A‑CUT™ Pistol / Aimpoint COA™ / caliber 9×19

€ 1 316In stock

View detail

A-CUT + COA in Practice: What It Means for the Shooter

The real value of the A-CUT and Aimpoint COA system becomes clear when viewed outside of its technical design and in the context of actual use. It’s not just about how the system is engineered, but what it delivers during everyday carry, training, or duty application.

A Complete System, Ready Out of the Box

One of the key advantages is that the entire setup is designed as a fully integrated system from the factory.

• the optic comes pre-installed on the pistol,
• there is no need to deal with adapter plates or compatibility issues,
• there is no need to adjust or replace iron sights.

👉 The result is a system that works straight out of the box—you can take the pistol and put it into use immediately.

Durability and Fewer Points of Failure

The combination of an enclosed optic and a mechanically integrated mounting interface reduces the number of potential failure points.

• the system is simpler, with fewer intermediate components,
• screws are not the primary load-bearing elements during slide cycling,
• the overall design manages forces more effectively.

👉 Fewer components mean fewer opportunities for parts to loosen, shift, or fail.

Practical Details That Matter

Beyond the core design, smaller details contribute to usability in day-to-day use:

• optic weight of approximately 48 g,
• side-loading battery without removing the optic,
• the option to use a cover plate if the optic is removed.

Individually, these may seem minor, but collectively they improve overall user experience.

What the A-CUT + COA System Gets Right

As shown throughout the article, A-CUT and Aimpoint COA are more than incremental updates to existing solutions. Several aspects stand out as particularly well executed.

Key strengths include:

• a lower optic position compared to conventional setups,
• a large viewing window within a compact form factor,
• effective co-witness without the need for excessively tall sights,
• a design that reduces stress on mounting hardware,
• a system engineered as a complete solution rather than an add-on.

👉 It’s the combination of these elements that makes the system work—each part is designed to complement the others, rather than function independently.

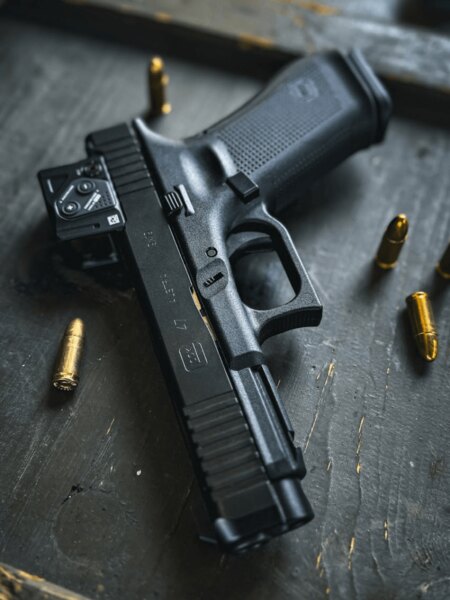

Glock 47 equipped with the Aimpoint COA red dot. The A-CUT design allows for direct, low-profile mounting without the use of an adapter plate. Photo: Rigad

Limitations: Who It May Not Be Ideal For

A-CUT + COA is not a universal solution, and it’s important to acknowledge its limitations.

• it represents a more closed ecosystem,
• it is not designed for mixing and matching different optics,
• it offers less flexibility compared to traditional footprint-based systems.

This means that if you prefer the ability to experiment with different optics or fine-tune your setup over time, conventional “optics-ready” solutions may still be a better fit.

👉 A-CUT + COA makes the most sense when you’re looking for a complete, purpose-built system that works without additional setup or adjustment.

The Future of A-CUT: A Direction, Not (Yet) a Standard

For now, A-CUT remains closely tied to Glock pistols and the Aimpoint COA optic. It is best understood as a complete factory system rather than an open standard that can be freely adapted across platforms.

At this stage, it exists primarily within the Glock × Aimpoint ecosystem and is designed as a turnkey solution—not a universal interface.

If the concept proves itself in real-world use, it’s likely that similar approaches to optic mounting will emerge from other manufacturers. For now, however, A-CUT represents a direction of development rather than an established industry standard.

Which Glock Models Feature A-CUT + COA

The A-CUT system paired with the Aimpoint COA optic is currently available on selected Glock pistol models, including:

• Glock 19
• Glock 43X
• Glock 45
• Glock 47
• Glock 48

Availability may vary depending on the market and individual distributors.

Conclusion: Does A-CUT and Aimpoint COA Make Sense?

A-CUT and Aimpoint COA are not just another new product release. Their relevance comes from addressing long-standing limitations in pistol-mounted optics.

• they position the optic lower relative to the bore axis,
• eliminate the need for adapter plates,
• retain fully usable iron sights,
• and introduce a compact enclosed optic format.

What matters most, however, is that this is not a collection of isolated improvements, but a system designed as a cohesive whole. The optic and its mounting interface are engineered to work together, resulting in a more mechanically and practically consistent solution than traditional optics-ready setups.

👉 For shooters looking for a simple, reliable, and well-integrated system without the need for further customization, this represents a compelling direction.

At the same time, those who prioritize maximum flexibility and the ability to mix different optics may still prefer conventional footprint-based solutions.

A-CUT and Aimpoint COA are not a one-size-fits-all answer—but they clearly point to where pistol-mounted optics may be heading.
