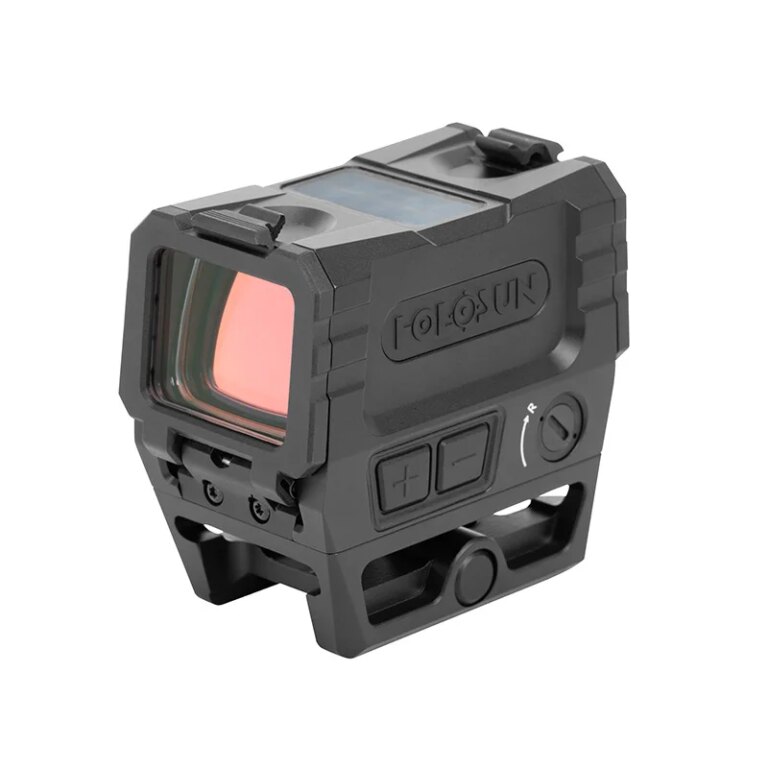

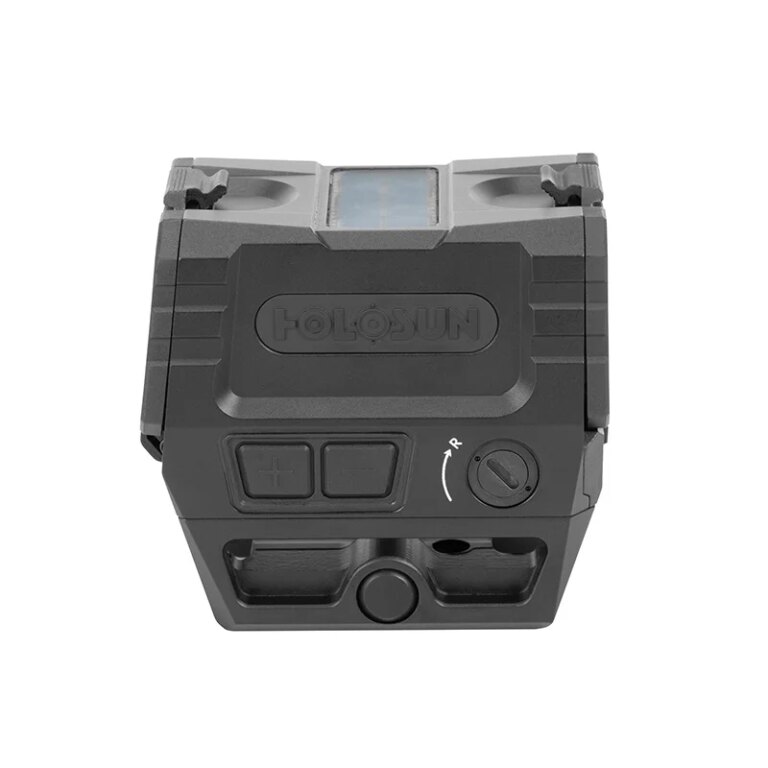

Holosun® AEMS EVO RD Enclosed Reflex Sight

The Holosun AEMS EVO RD is an enclosed rifle reflex sight with an enlarged viewing window and a red Multi-Reticle System. It allows the user to select a 2 MOA dot, a 65 MOA circle, or a circle-dot combination. Automatic brightness control, Solar Failsafe, Shake Awake, memory, and Lockout Mode support reliable operation, while the included Picatinny mount provides a 1.63" optical centerline for a lower 1/3 co-witness setup.

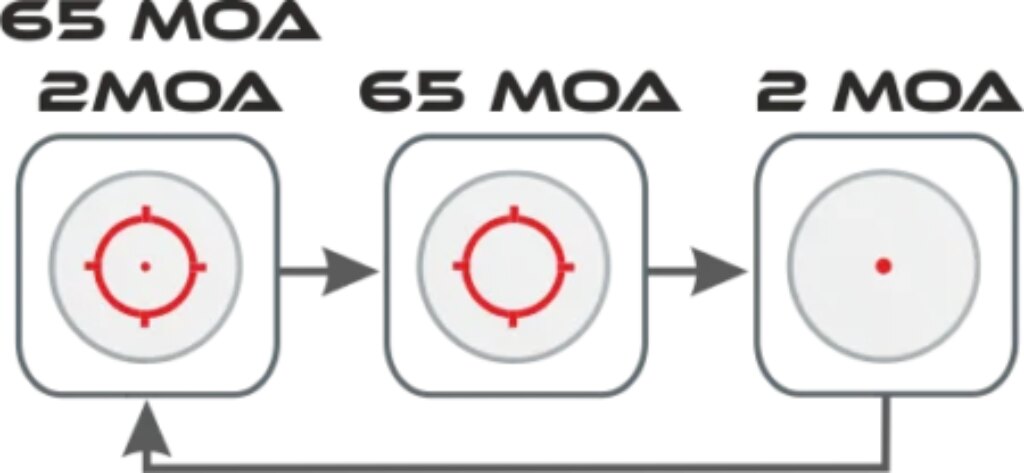

Selectable Multi-Reticle System

The Multi-Reticle System offers three reticle options: a precise 2 MOA dot, a 65 MOA circle, or a combination of both. The dot supports more precise aiming, while the large circle facilitates rapid reticle acquisition. Switching between the reticle options does not affect the sight’s zero.

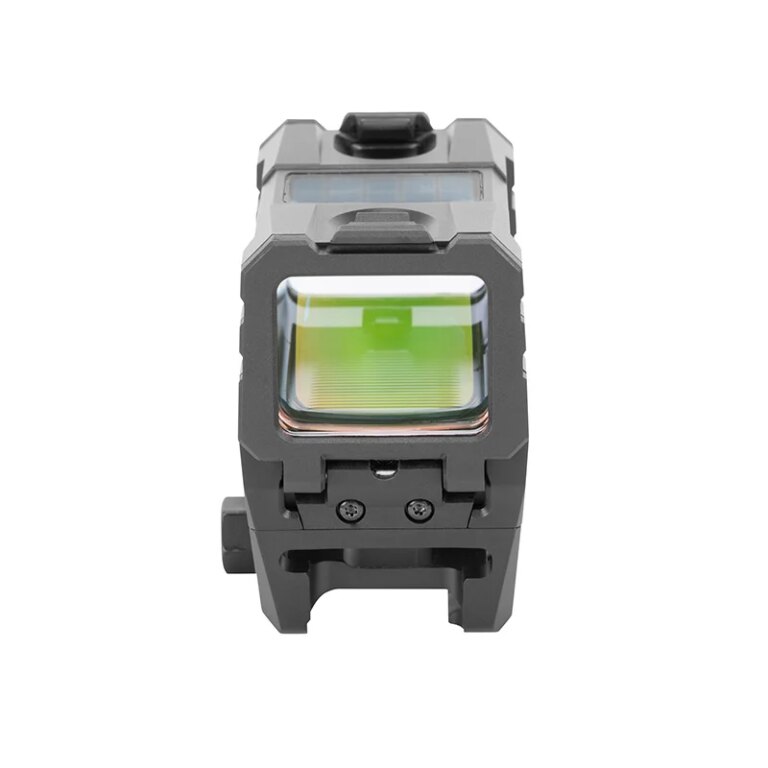

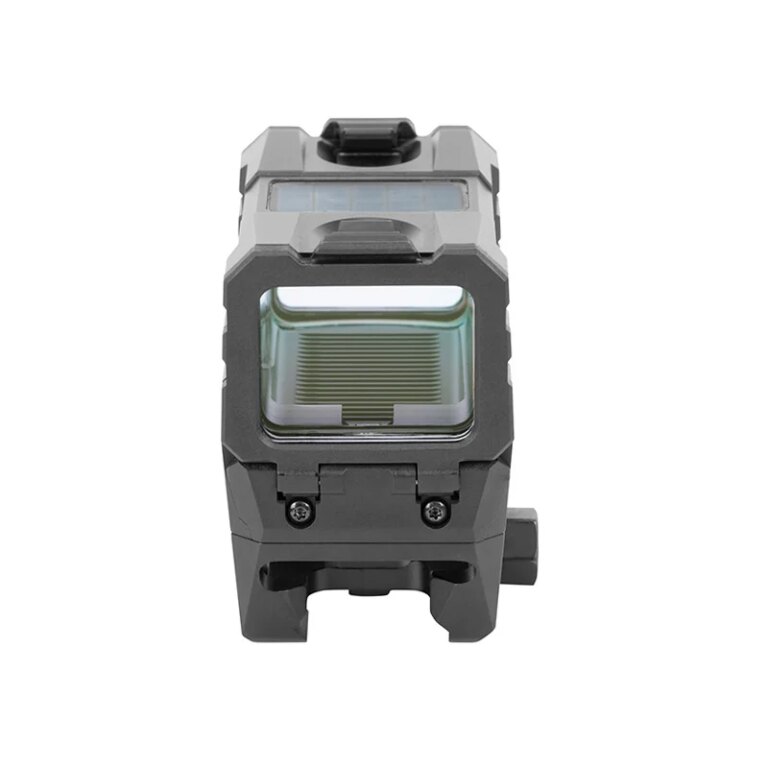

Enlarged Viewing Window

The viewing window measures 1.26 × 0.98", approximately 32 × 25 mm. Its expanded surface provides a wide sight picture and more space for acquiring the reticle while maintaining awareness of the target area. The enclosed housing protects the emitter from moisture, dust, and debris.

Automatic and Manual Brightness Control

A forward-facing light sensor automatically adjusts the reticle intensity to changing ambient light conditions. Manual adjustment is also available, offering 8 daytime brightness settings and 4 settings compatible with night vision devices. Lockout Mode prevents accidental changes to the selected settings.

Solar Failsafe and Shake Awake

Solar Failsafe uses the integrated solar panel to supplement battery power and support operation in changing lighting conditions. Shake Awake places the electronics into sleep mode after a period of inactivity and reactivates the sight when movement is detected. The memory function restores the previously selected settings.

Up to 100,000 Hours of Battery Life

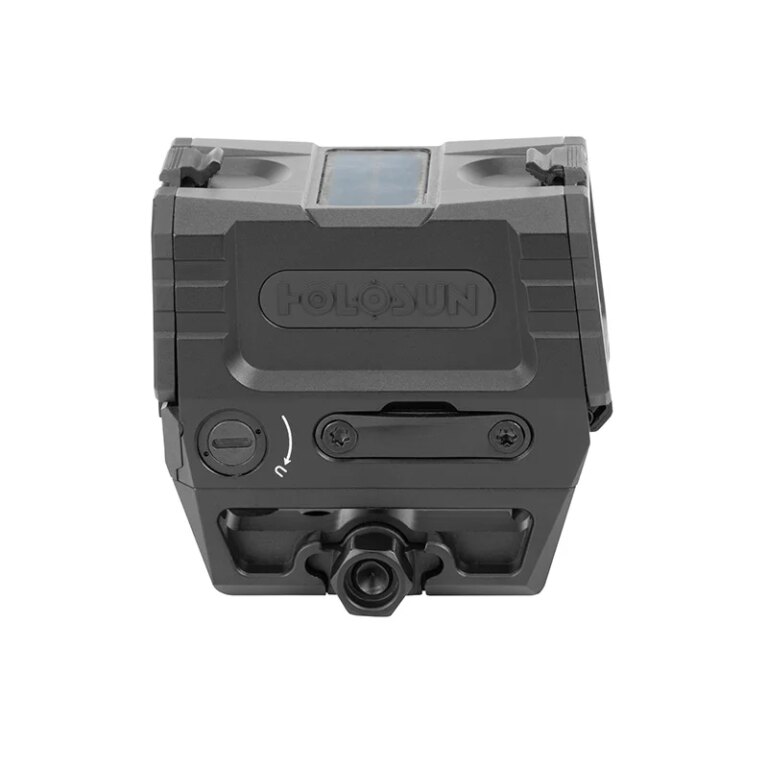

The sight is powered by a CR2032 battery housed in a side-loading tray, allowing it to be replaced without removing the optic from its mount. Battery life can reach up to 100,000 hours, depending on the selected brightness and reticle settings.

7075-T6 Aluminum Housing

The housing is machined from 7075-T6 aluminum and protected by a hard-anodized finish. The sight is rated IPX8 for water resistance and withstands vibration loads of up to 1,000 G. Elevation and windage adjustments provide a range of ±50 MOA, with each click corresponding to 0.5 MOA.

Picatinny Mount with Lower 1/3 Co-Witness Height

The sight mounts directly to a Picatinny rail. The included mount positions the optical centerline 1.63", approximately 41.4 mm, above the rail for a lower 1/3 co-witness configuration. The optic provides true 1× magnification and unlimited eye relief.

Key Features:

• Enclosed rifle reflex sight
• Protected emitter
• Red Multi-Reticle System
• Selectable 2 MOA dot, 65 MOA circle, or circle-dot reticle
• Large 1.26 × 0.98" / approximately 32 × 25 mm viewing window
• Automatic and manual brightness control
• 8 daytime and 4 night vision-compatible brightness settings
• Solar Failsafe
• Shake Awake
• Memory function
• Lockout Mode
• Side-loading CR2032 battery
• Battery life of up to 100,000 hours
• 7075-T6 aluminum housing
• Hard-anodized finish
• IPX8 water-resistance rating
• Vibration resistance up to 1,000 G
• 0.5 MOA adjustment per click
• Elevation and windage adjustment range of ±50 MOA
• Direct Picatinny mounting
• 1.63" / approximately 41.4 mm optical centerline
• Lower 1/3 co-witness configuration
• True 1× magnification
• Unlimited eye relief
