AR-15: Piston vs. Direct Impingement—Key Differences, Pros, and Cons

Piston or direct impingement? Few questions can ignite a longer debate among AR-15 owners. The differences in reliability, accuracy, and operating characteristics depend not only on the design itself, but also on the conditions in which the rifle is used. Here is how the conventional system commonly described as direct impingement compares with piston-operated designs—including the major advantages and less obvious drawbacks of each.

How the AR-15 Works: Direct Impingement vs. Piston Operation

Modern AR-15-pattern rifles generally follow one of two operating concepts: the traditional direct-gas system commonly called DI, or a gas-piston system. Both harness propellant gas tapped from the barrel. The key difference is where that gas acts and how its energy is transferred to the bolt carrier.

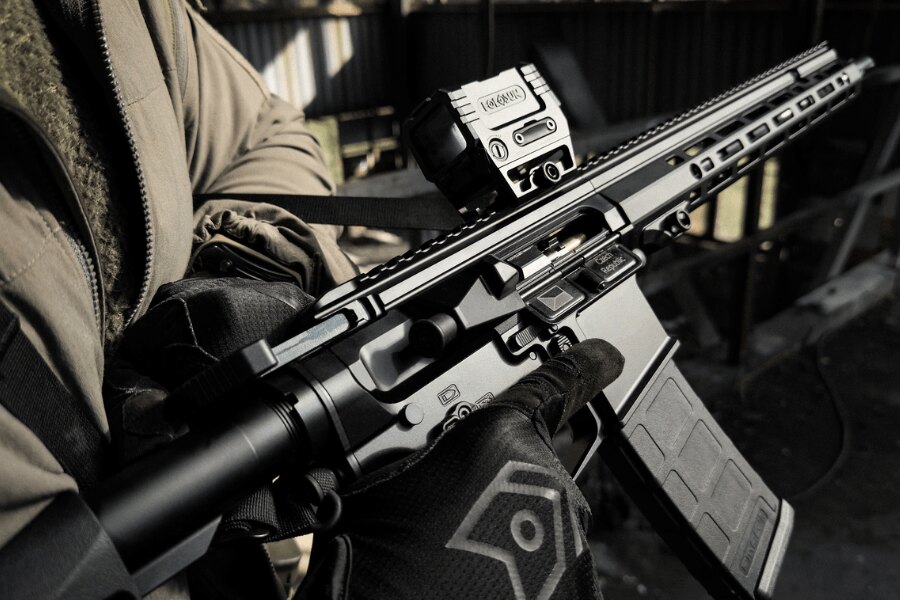

The piston-operated Antreg ARS M4s fitted with a Holosun red dot sight. The AR-15 platform includes both conventional DI configurations and rifles with a separate piston operating system. Photo: Rigad

Direct Impingement: Gas Inside the Bolt Carrier

In a conventional DI system, propellant gas travels through the gas tube and enters the expansion chamber formed between the bolt and bolt carrier.

As pressure builds, it drives the carrier rearward. The interaction between the carrier’s cam path and the cam pin rotates and unlocks the bolt. The bolt carrier group then continues rearward, with the extractor pulling the fired case from the chamber. Once the case clears the chamber and the locking lugs of the barrel extension, the spring-loaded ejector in the bolt face drives it out through the ejection port. The action spring then sends the mechanism forward, stripping a fresh cartridge from the magazine, chambering it, and locking the bolt for the next shot.

Strictly speaking, this arrangement incorporates a form of piston operation. In Eugene Stoner’s patent, the bolt functions as the piston while the carrier acts as the moving cylinder. For clarity, however, we will use the widely established term direct impingement, or DI, throughout this article.

Piston Operation: Short-Stroke and Long-Stroke Systems

In a piston-operated system, gas tapped from the barrel enters a gas block or cylinder near the gas port. The resulting pressure drives a piston or moving cylinder rearward, transferring energy to the bolt carrier.

If the piston assembly remains connected to the carrier and travels with it throughout the operating cycle, the design is classified as a long-stroke piston system. If the piston moves only a short distance before delivering an impulse to the carrier—either directly or through an operating rod—it is a short-stroke piston system.

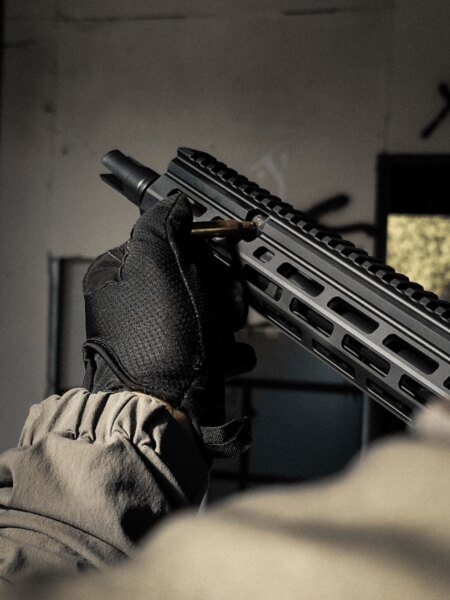

In a piston-operated design, propellant gas acts on the piston assembly near the barrel’s gas port. The assembly then transfers its operating impulse to the bolt carrier. Photo: Rigad

AR-18 and Colt Model 703: The Search for a Piston Alternative

The AR-18 and Its Influence on Later Designs

Not everyone realizes that ArmaLite began developing the short-stroke, piston-operated AR-18 as early as 1963. After transferring the rights to the AR-15 to Colt, the company needed a new rifle that would not infringe on the patent protection surrounding Stoner’s gas system.

Although technically innovative, the AR-18 never achieved major commercial success. Its construction made extensive use of stamped-steel components, while twin recoil springs housed inside the receiver eliminated the need for a buffer tube and allowed the use of a folding stock. Meanwhile, the U.S. military was already procuring the M16, and the AR-18 faced development and manufacturing limitations of its own.

Its historical influence, however, extends far beyond its sales figures. The design helped shape later rifles including the HK G36, whose piston system subsequently provided a foundation for the gas system used in the HK416.

The M16 in Vietnam and Development of the Colt 703

Colt also developed a piston-operated variant based on the M16. During the rifle’s early service life—particularly its deployment in Vietnam—engineers explored several ways to modify the operating system in pursuit of greater reliability.

The M16 experienced serious problems in Vietnam, including stoppages, failures to extract, and damaged or torn case rims. There was no single cause. The propellant used in the ammunition affected cyclic rate and fouling. Corrosion and surface damage inside the chamber made extraction more difficult. Inadequate training, maintenance procedures, and access to cleaning equipment compounded the problem. The failures therefore cannot be attributed solely to the DI operating principle.

During this period, Colt began developing a long-stroke piston system inspired by the AK-47. The resulting prototype used a long piston and operating rod connected directly to the bolt carrier and also incorporated an adjustable gas regulator.

The M16’s reliability improved through a combination of design changes, ammunition revisions, chrome-plating of the chamber, and better training and maintenance practices. The piston-operated Colt Model 703, documented in a company report published in 1969, never progressed beyond the prototype stage.

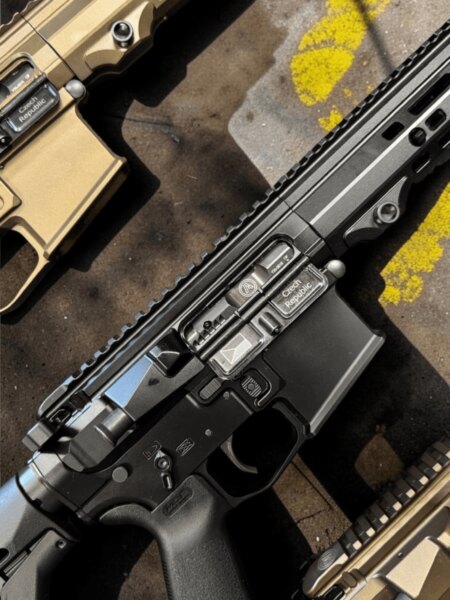

Reduced fouling inside the action is a typical advantage of piston-operated designs. Both operating systems still require regular cleaning and proper lubrication. Photo: Rigad

Direct Impingement vs. Piston Operation: Advantages and Drawbacks

The following comparison outlines the typical advantages and engineering trade-offs associated with each system. Their practical significance depends on the specific rifle, its execution, and the conditions in which it is used. Unlock timing and component service life cannot be determined solely by whether a rifle uses DI or piston operation.

Piston Operation: Advantages and Drawbacks

Drawbacks:

• The space required for the piston assembly can increase the height and overall profile of the upper receiver and handguard.
• Piston rifles are often heavier than comparable DI configurations, particularly toward the front of the weapon.
• The movement of the piston assembly and the way it transfers energy to the bolt carrier can produce a sharper or more pronounced felt recoil impulse.
• Manufacturer-specific designs vary considerably. Parts commonality and aftermarket support are therefore usually more limited than with conventional DI AR-15s.
• The piston assembly adds mass and mechanical forces around the barrel, potentially affecting barrel harmonics. The resulting effect on accuracy depends on the individual design.
• Because the piston or operating rod transfers force above the bore axis, it can generate additional torque and contribute to muzzle rise.

Advantages:

• Propellant gas is not routed directly into the bolt carrier group through a gas tube, reducing direct heat exposure in the action. Internal components still heat up during firing, however.
• The action generally accumulates less carbon fouling, with more combustion residue collecting toward the front of the gas system.
• Cleaning the bolt carrier group and receiver may therefore be easier. The piston assembly still requires maintenance, and the rifle must continue to be lubricated according to the manufacturer’s instructions.

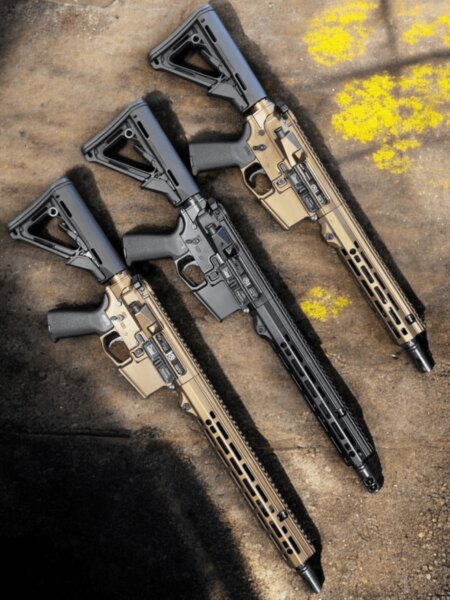

Different AR-15 configurations share a broadly similar layout and control scheme. Their performance, however, depends on the specific design and manufacturing quality—not merely on the operating system. Photo: Rigad

Direct Impingement: Advantages and Drawbacks

Drawbacks:

• Routing hot propellant gas into the bolt carrier increases the thermal load on this part of the action. Bolt and gas-ring service life also depends on design, materials, manufacturing quality, and firing schedule.
• High temperatures can accelerate lubricant burn-off and degradation. Insufficient lubrication increases friction and wear on components such as the cam pin, the cam-pin bore in the bolt, and the cam path inside the carrier.
• Combustion residue carried into the action with the operating gas produces greater fouling around the bolt and carrier.
• As a result, the action generally requires closer attention during cleaning, while the manufacturer’s lubrication requirements remain particularly important.
• Some suppressors can extend the duration of gas pressure in the system, causing the rifle to become overgassed. This may increase cyclic speed and place additional stress on internal components. It does not automatically mean that maximum chamber pressure has increased. Gas may also escape through the ejection port and around the charging handle toward the shooter’s face. The severity of these effects depends on the specific combination of rifle, suppressor, and ammunition. Piston-operated rifles can also experience changes in cycling and gas blowback when suppressed.

Advantages:

• The system permits a very slim upper-receiver and handguard profile.
• The gas system is generally lightweight.
• It uses fewer gas-system components than an external piston assembly.
• The operating force acts directly along the axis of the bolt carrier.
• The barrel can be fully free-floated, although piston rifles can also use free-float configurations. The operating system alone does not determine mechanical accuracy.
• Standard-pattern DI AR-15s benefit from exceptional availability of factory and aftermarket replacement parts. Compatibility must still be confirmed for the specific component and rifle configuration.
• Because there is no separate operating rod striking the carrier, the mechanism may feel smoother and produce a softer perceived recoil impulse.
• A broad selection of adjustable gas blocks is available for different DI configurations. Some piston systems also incorporate adjustable gas regulation.

Final Verdict: What Matters When Choosing an AR-15

Both systems offer genuine strengths and unavoidable compromises, making it difficult to declare an overall winner. The decision becomes easier once the rifle’s intended role is defined. A competition rifle or recreational range gun presents different priorities from a weapon intended for duty or combat use. Cost may also play a significant role.

DI rifles perform extremely well in competition, while both operating systems are widely used in law-enforcement and military service. Select-fire capability does not automatically make piston operation necessary—the M4A1, for example, retains the traditional DI system. In practice, proven reliability, sound engineering, and manufacturing quality matter more than the operating principle alone.
