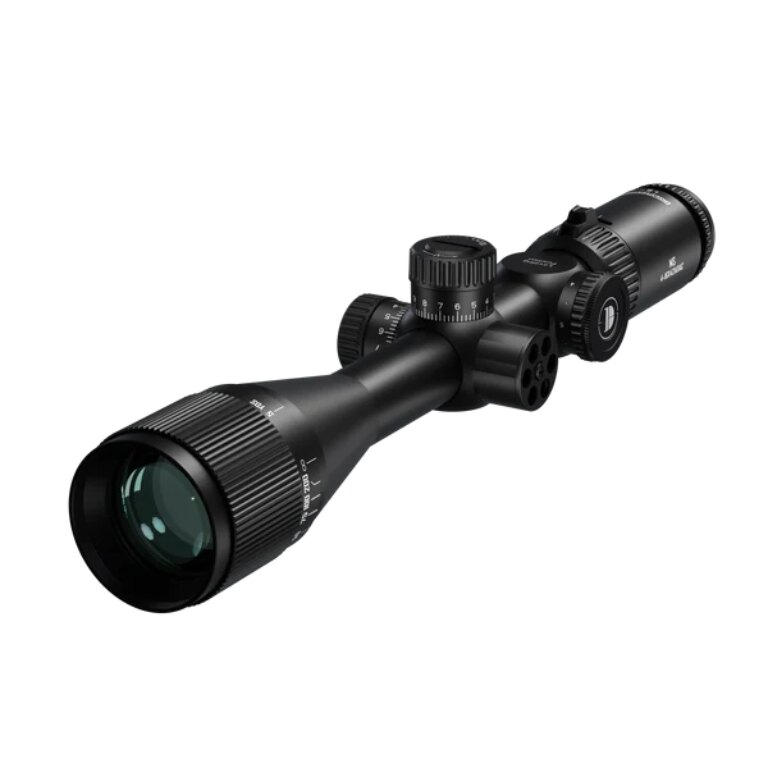

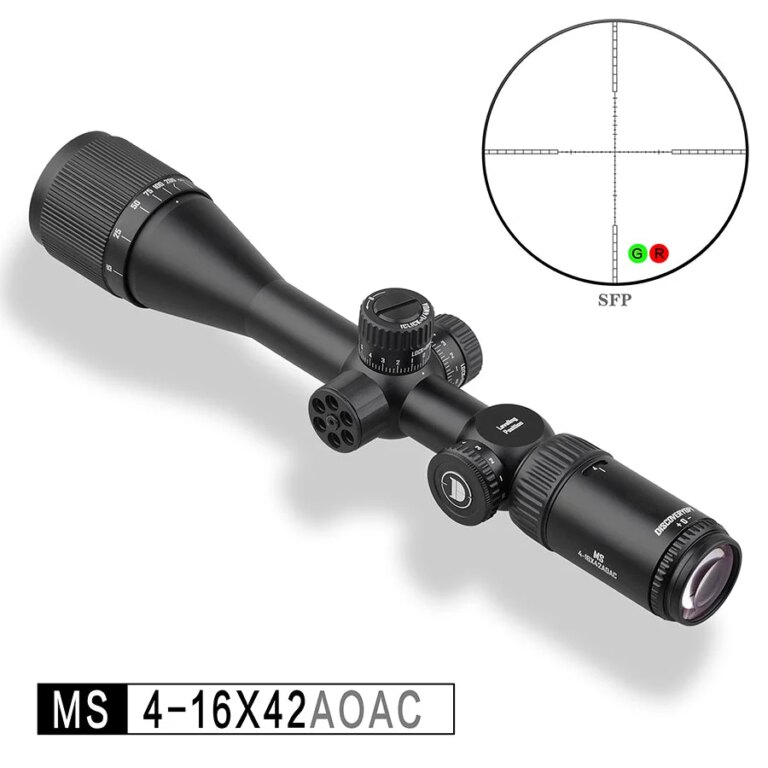

Discoveryopt® MS 4–16×44 AOAC SFP-L MOA Riflescope

The Discoveryopt MS 4–16×44 AOAC SFP-L MOA combines a 4–16× magnification range, 44 mm adjustable objective, and a red illuminated reticle in the second focal plane. The locking turrets provide MOA-based adjustments with a 0.25 MOA click value. Parallax can be adjusted through the objective from 5 yd / approximately 4.6 m to infinity. The riflescope also features a 1 in / 25.4 mm main tube, nitrogen-purged construction, and an IP66 rating.

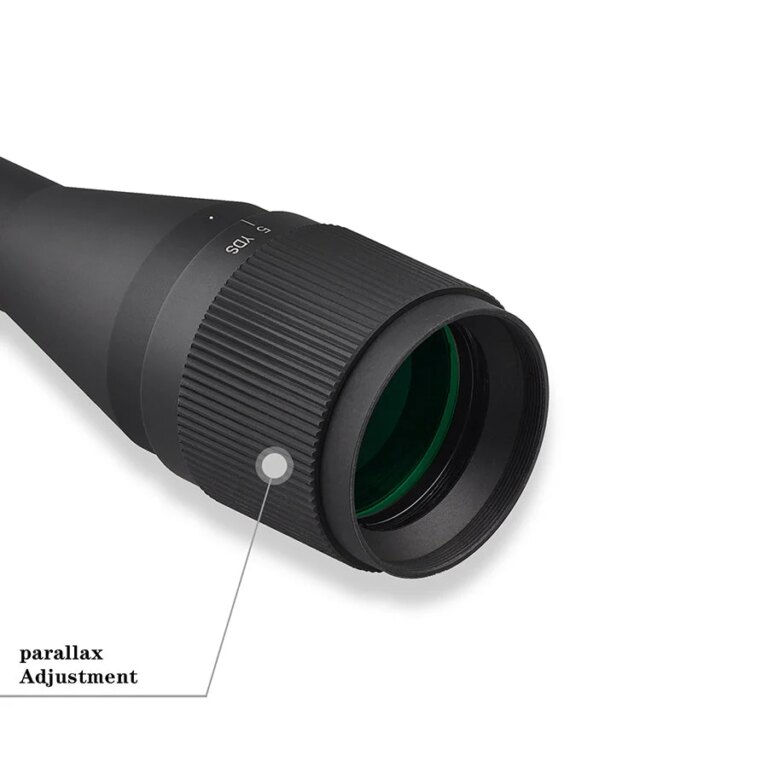

Adjustable Objective with Parallax Control

The adjustable objective provides parallax correction from 5 yd / approximately 4.6 m to infinity. This allows the riflescope to be configured for both close-range and more distant targets. The AO designation refers to the Adjustable Objective system, meaning parallax is adjusted directly through the objective assembly.

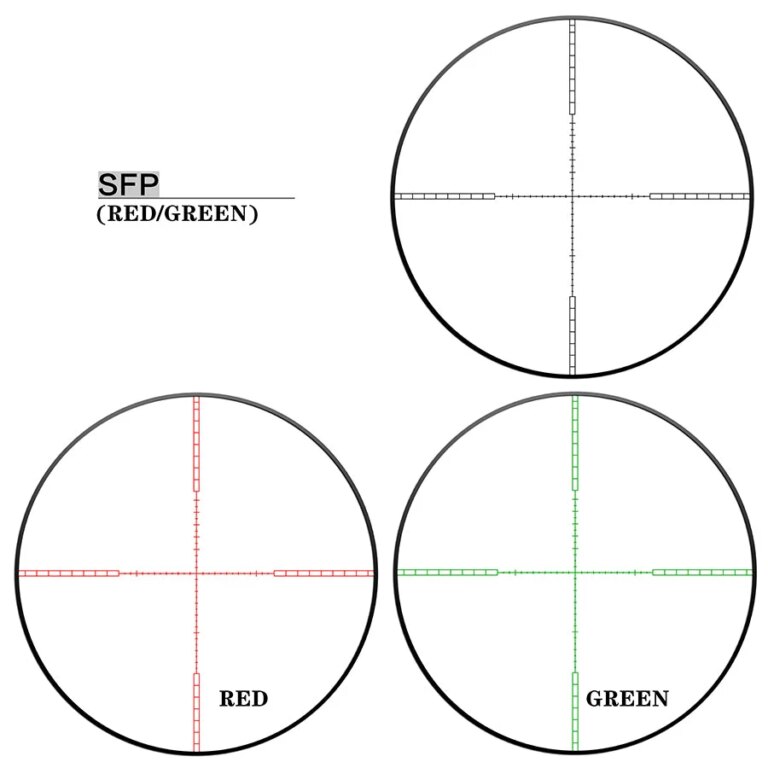

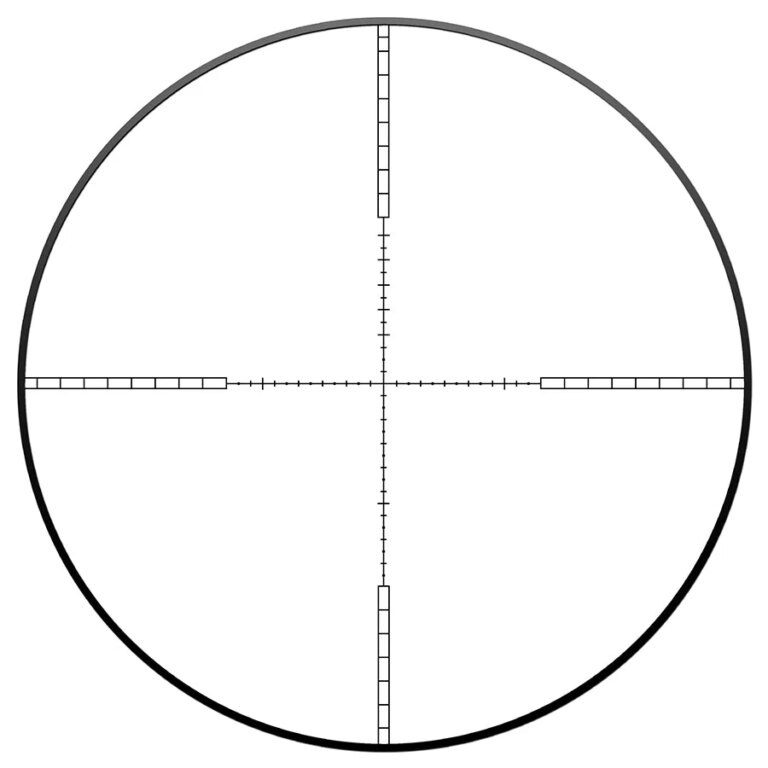

Second Focal Plane Reticle with Red Illumination

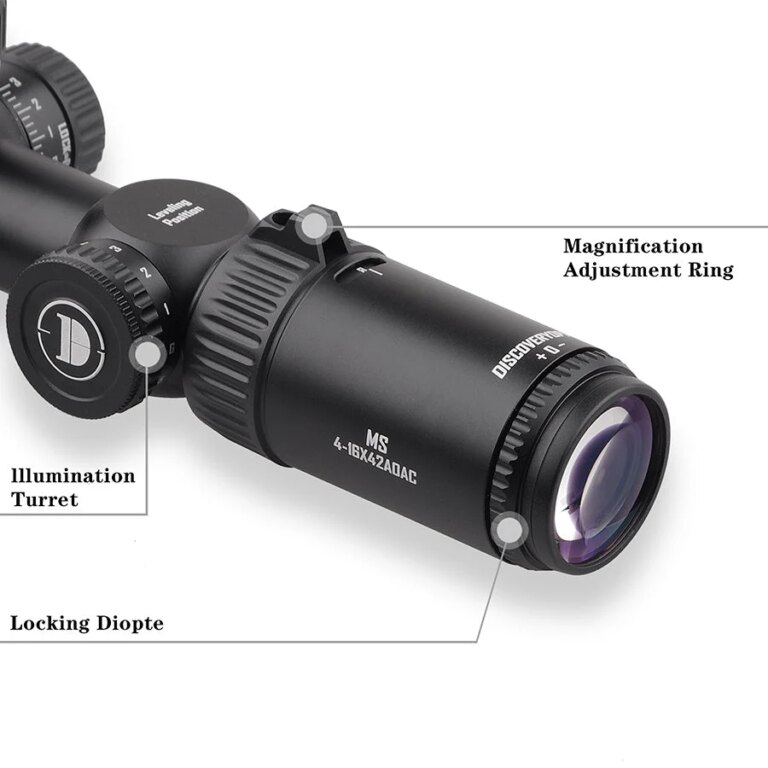

The reticle is located in the second focal plane, meaning its apparent size remains constant as magnification changes. Red illumination with 6 brightness settings improves reticle visibility against dark or low-contrast backgrounds. The illumination system is powered by one CR2032 battery.

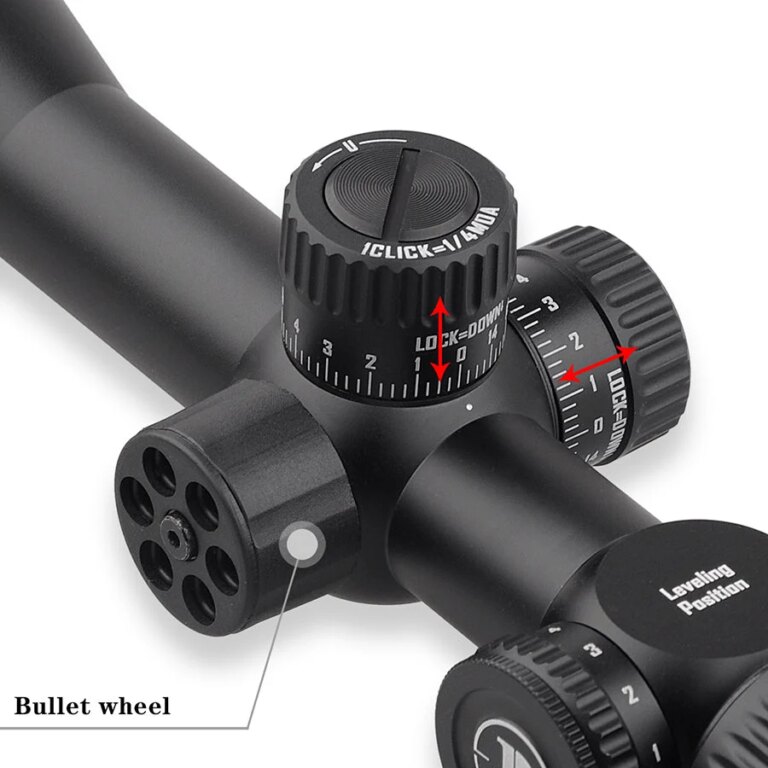

0.25 MOA Adjustments and Locking Turrets

Each elevation and windage click equals 0.25 MOA, corresponding to approximately 7.3 mm at 100 m. The riflescope provides 80 MOA of total elevation travel and 80 MOA of total windage travel. Both turrets can be locked after adjustment to reduce the risk of unintended rotation during handling or transport.

4–16× Magnification Range

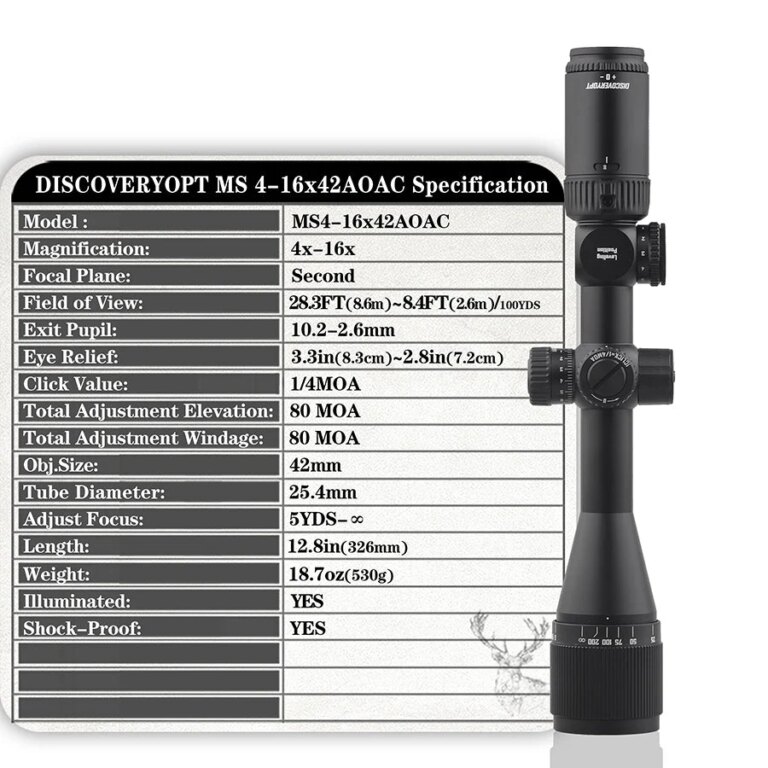

The 4–16× magnification range provides a broader view of the target area at the lower settings and supports more detailed observation and precise aiming at increased distances. The field of view ranges from approximately 8.6 to 2.6 m at 100 yd. The exit pupil ranges from 10.2 to 2.6 mm, while eye relief measures approximately 83 to 72 mm.

One-Inch Main Tube and IP66 Protection

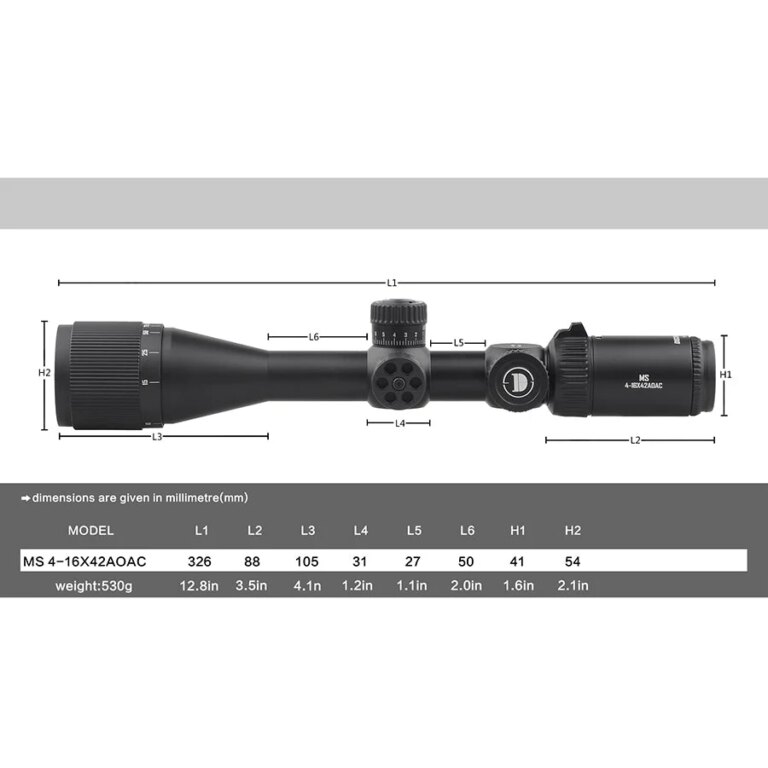

The riflescope features a 1 in / 25.4 mm main tube, measures 326 mm in overall length, and weighs 530 g. Nitrogen purging helps prevent internal fogging, while the IP66 rating provides dust-tight protection and resistance to powerful water jets. The manufacturer rates this model for 5.56 NATO recoil.

Included Accessories

The package includes the riflescope, sunshade, cleaning cloth, turret adjustment tool, user manual, 2 specification cards, and a warranty and inspection card. Scope rings are not included and must be selected separately for the 1 in / 25.4 mm main tube.

Key Benefits:

• 4–16× magnification range
• 44 mm adjustable objective
• objective-mounted parallax adjustment
• parallax adjustment from 5 yd / approximately 4.6 m to infinity
• SFP-L reticle in the second focal plane
• red reticle illumination
• 6 illumination brightness settings
• MOA-based adjustments
• 0.25 MOA click value
• 80 MOA of total elevation travel
• 80 MOA of total windage travel
• locking elevation and windage turrets
• field of view of approximately 8.6–2.6 m at 100 yd
• 10.2–2.6 mm exit pupil
• approximately 83–72 mm eye relief
• 1 in / 25.4 mm main tube
• 326 mm overall length
• 530 g weight
• nitrogen-purged construction
• IP66-rated protection
• rated by the manufacturer for 5.56 NATO recoil
• powered by one CR2032 battery
• sunshade included
• scope rings not included
