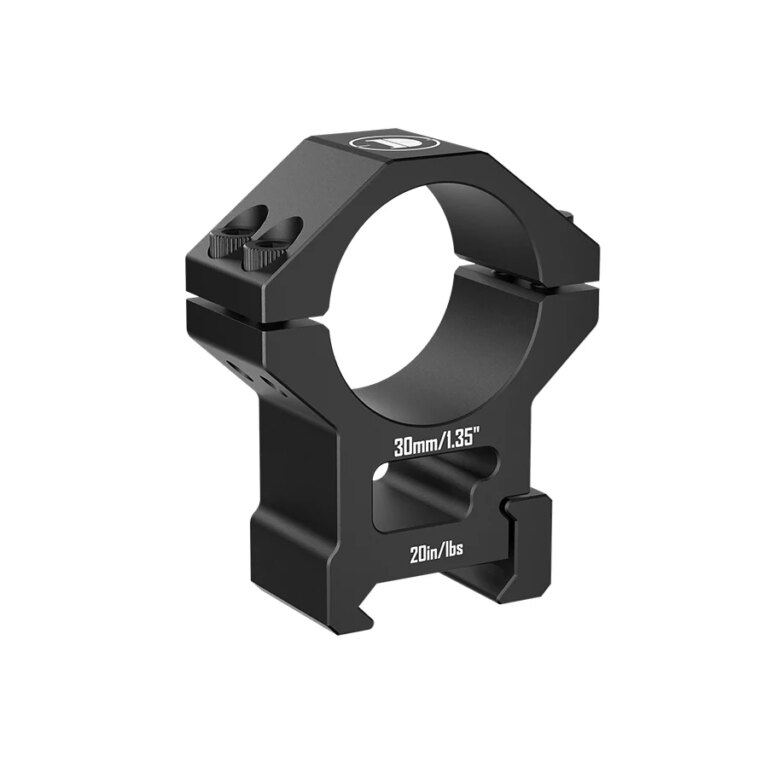

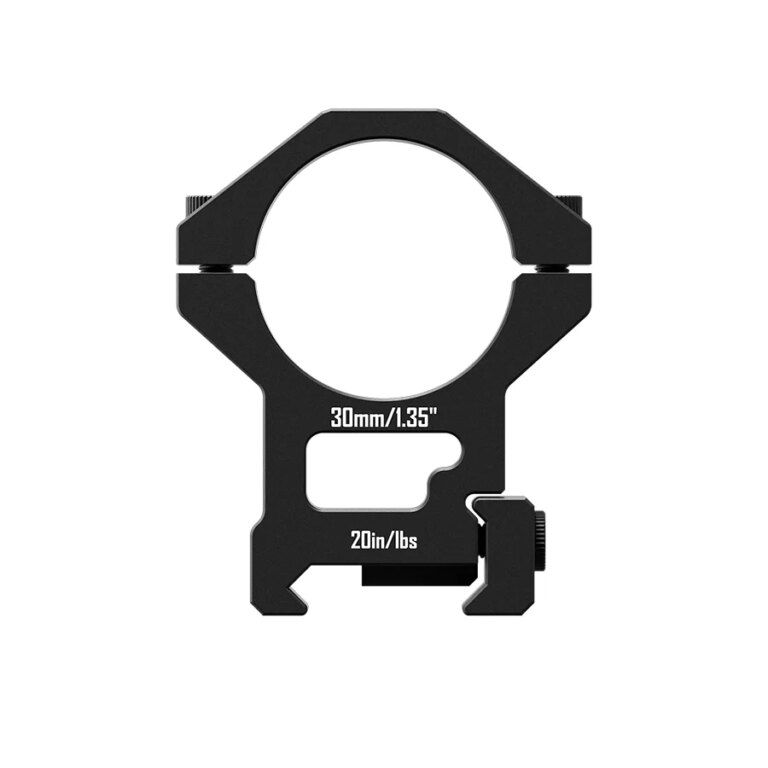

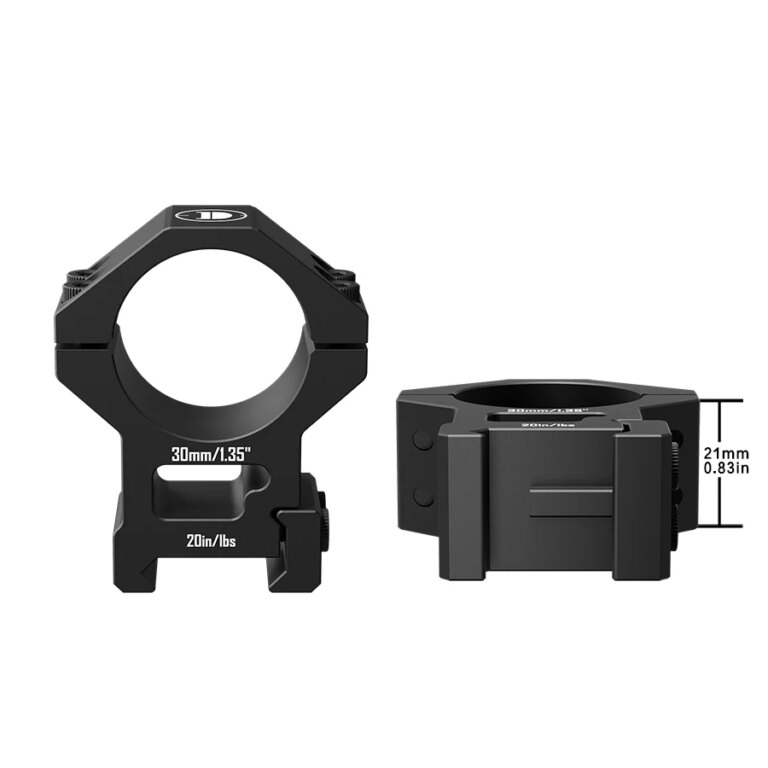

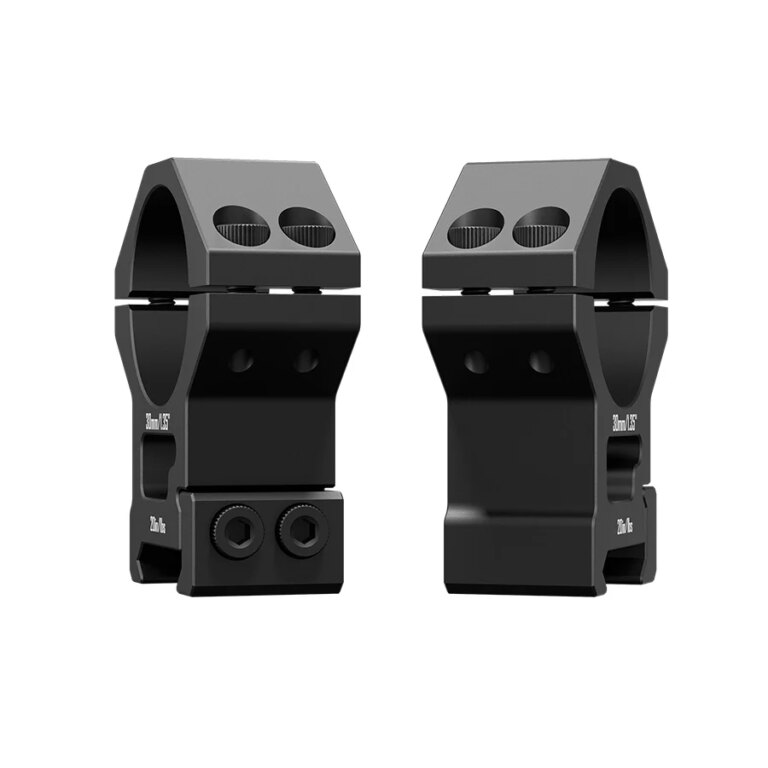

Discoveryopt® 6063 High Picatinny Scope Rings, 30 mm, 1.35″

Discoveryopt 6063 High 1.35″ Scope Rings are designed for riflescopes with a 30 mm tube and mounting on a MIL-STD-1913 Picatinny or Weaver rail. The set comprises two separate rings CNC-machined from 6063-T6 aluminum alloy and protected by a Type III hard-coat anodized finish. Precision-honed inner surfaces provide uniform contact with the scope tube, while the recommended tightening torque is marked directly on the rings.

For 30 mm Scope Tubes

These rings are designed for riflescopes with a 30 mm main tube. Their separate configuration allows the front and rear rings to be positioned independently according to the available mounting surface on the scope and the layout of the firearm’s rail.

Picatinny and Weaver Compatibility

According to the manufacturer, the rings are compatible with both MIL-STD-1913 Picatinny and Weaver rails. The two-screw mounting system secures each ring to the rail and provides a stable interface between the firearm and optic.

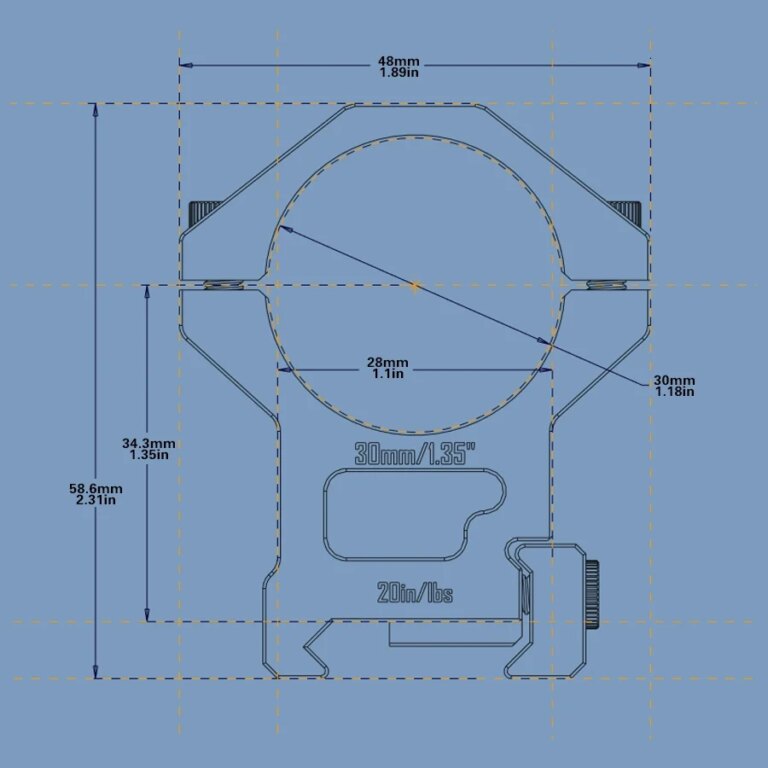

High 1.35″ Configuration

The manufacturer classifies this model as a High mount with a height of 1.35″, approximately 34.3 mm. The elevated position provides additional clearance for riflescopes with larger objective housings. Compatibility should always be checked against the firearm, rail height, and external dimensions of the selected optic.

6063-T6 Aluminum Construction

The rings are CNC-machined from 6063-T6 aluminum alloy. A matte Type III hard-coat anodized finish increases resistance to scratches, wear, and corrosion. Precision-honed inner surfaces promote even contact and pressure distribution around the scope tube when correctly installed.

Specified Installation Torque

The recommended tightening torque of 18 in-lb, approximately 2 Nm, is marked directly on the rings. The mount has a neutral 0 MOA cant. The manufacturer specifies coaxiality of ≤ 0.01 mm/m and resistance to shock loads of at least 1,000 G.

Key Features:

• designed for 30 mm scope tubes
• compatible with MIL-STD-1913 Picatinny and Weaver rails
• High 1.35″ / approximately 34.3 mm configuration
• two separate scope rings
• 6063-T6 aluminum alloy
• CNC-machined construction
• matte Type III hard-coat anodized finish
• precision-honed inner surfaces
• uniform contact with the scope tube
• two-screw mounting system
• marked tightening torque of 18 in-lb / approximately 2 Nm
• neutral 0 MOA cant
• manufacturer-specified coaxiality of ≤ 0.01 mm/m
• rated for shock loads of at least 1,000 G
