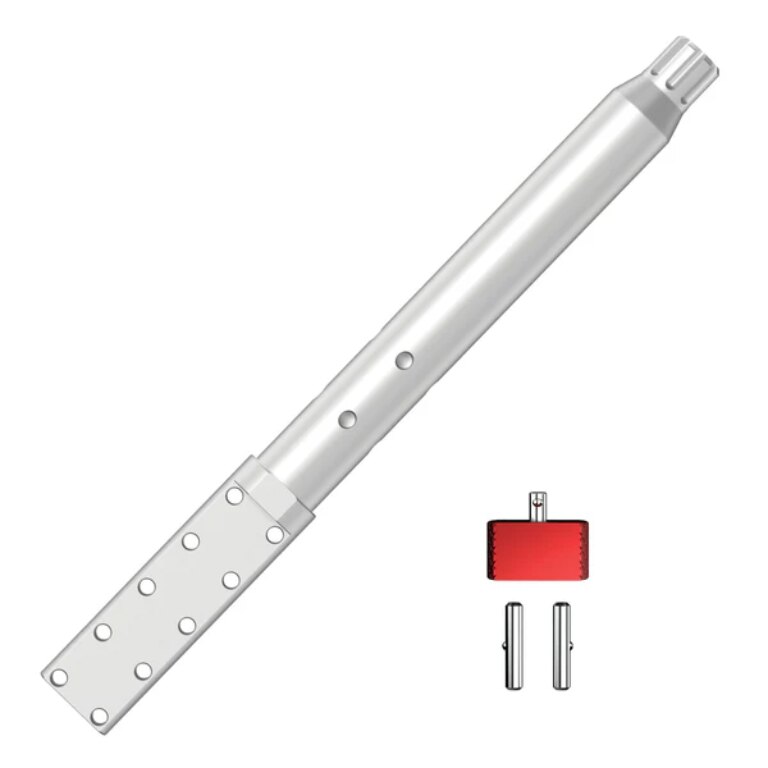

Real Avid® Lug-Lok Upper Vise Block for AR10

The Real Avid Lug-Lok Upper Vise Block for AR10 is a professional gunsmithing fixture that secures the upper receiver in a bench vise by engaging the barrel extension lugs instead of clamping the receiver itself. This design transfers torque through the strongest part of the upper assembly, helping protect the receiver from stress and deformation during barrel installation, maintenance, and other high-torque gunsmithing tasks.

Secure Upper Receiver Support

Unlike conventional upper receiver vise blocks that clamp the exterior of the receiver, the Lug-Lok system engages the locking lugs of the barrel extension. This reduces stress on the receiver body while providing a rigid, stable platform for demanding work such as barrel nut installation, handguard replacement, muzzle device installation, and other maintenance procedures.

Barrel Extension Lug Engagement

By supporting the upper assembly through the barrel extension, torque is transferred directly to one of the strongest components of the rifle. This approach is particularly beneficial on the AR10 platform, where upper receiver dimensions can vary between manufacturers. The vise block is designed for standard Mil-Spec-pattern AR10 upper receivers. Compatibility with non-standard AR10/LR-308 variants should be verified before use.

Stable Positioning in the Vise

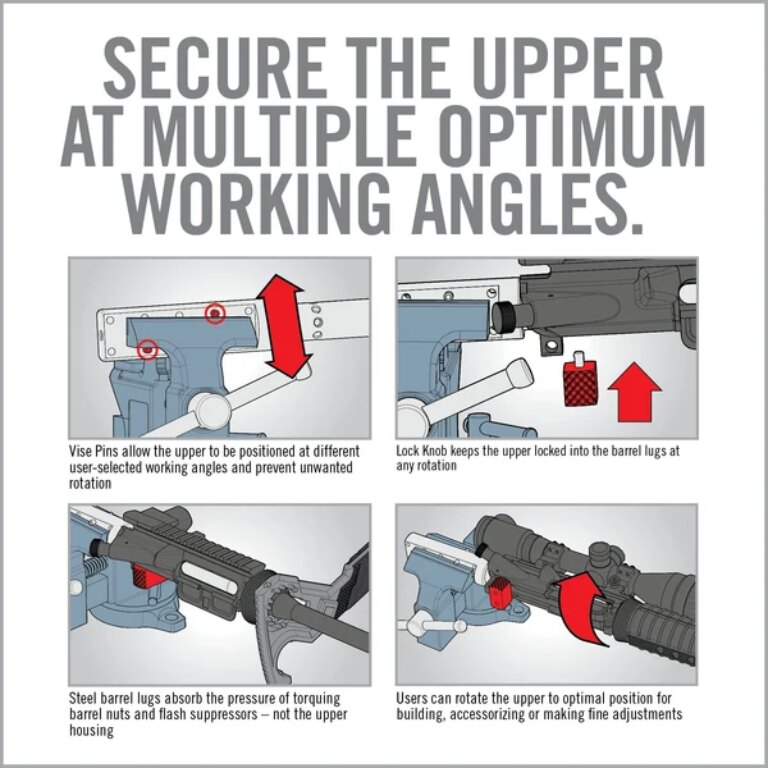

A locking knob secures the support rod in place, while the included vise pins allow the upper receiver to be positioned at multiple working angles and help prevent unwanted movement during gunsmithing operations. The system is well suited for barrel work, handguard installation, muzzle device replacement, inspections, and routine maintenance.

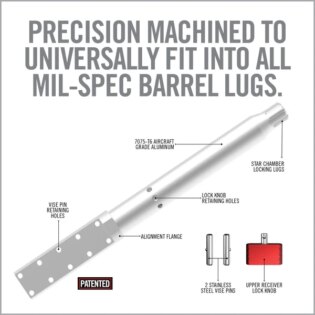

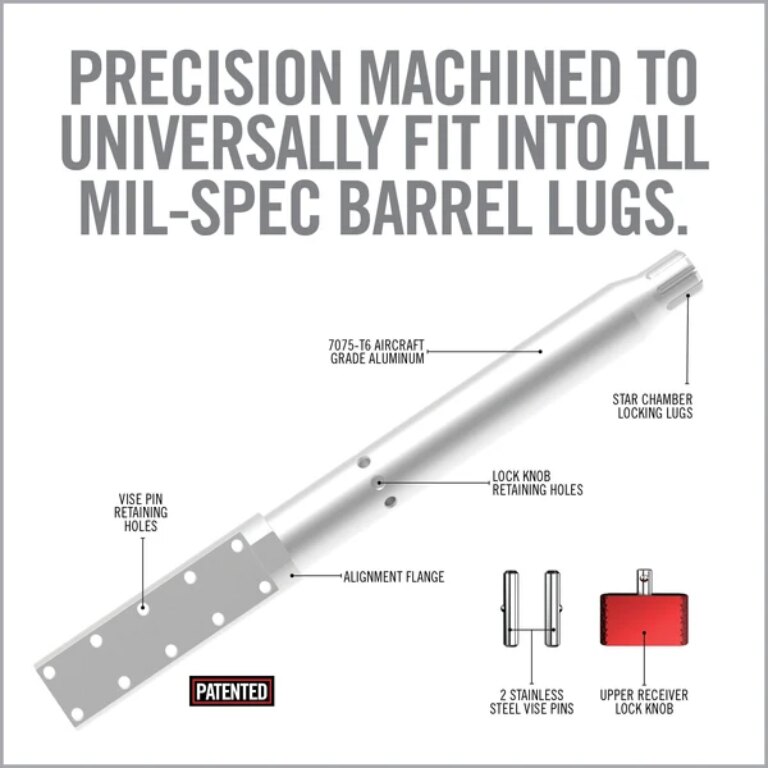

Precision-Machined Aluminum Construction

Machined from aerospace-grade aluminum, the Lug-Lok Upper Vise Block is strong enough for repeated professional use while remaining softer than hardened steel firearm components, helping minimize the risk of damage to contact surfaces.

Benefits You Need to Know:

• bench vise block for AR10 upper receivers
• supports the upper via the barrel extension lugs
• eliminates clamping of the receiver exterior
• helps prevent receiver stress and deformation
• designed for high-torque gunsmithing tasks
• locking knob secures the support rod
• includes vise pins for multiple working positions
• precision-machined aerospace-grade aluminum
• ideal for barrel, handguard, and muzzle device installation
• compatible with standard Mil-Spec-pattern AR10 upper receivers
