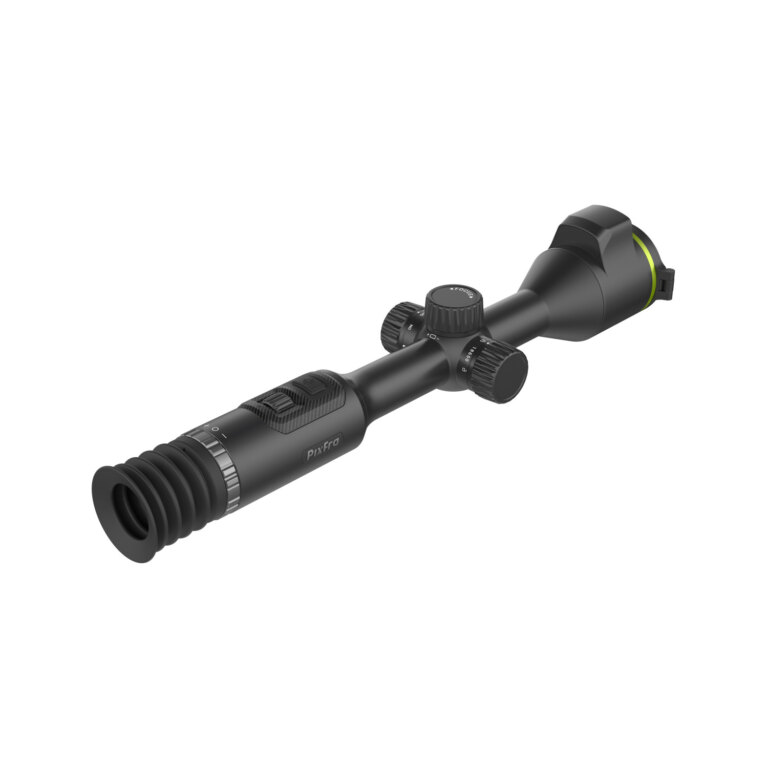

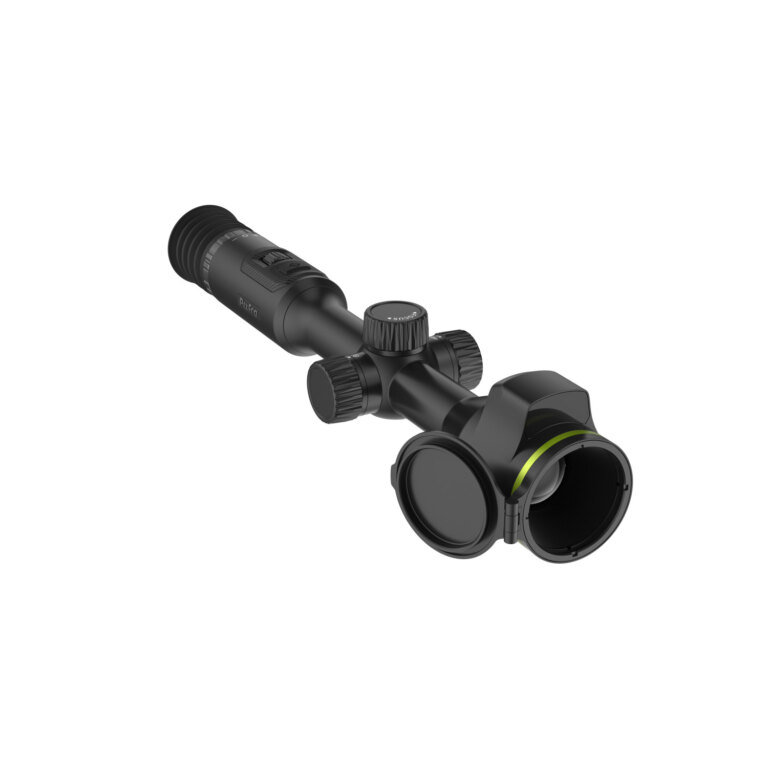

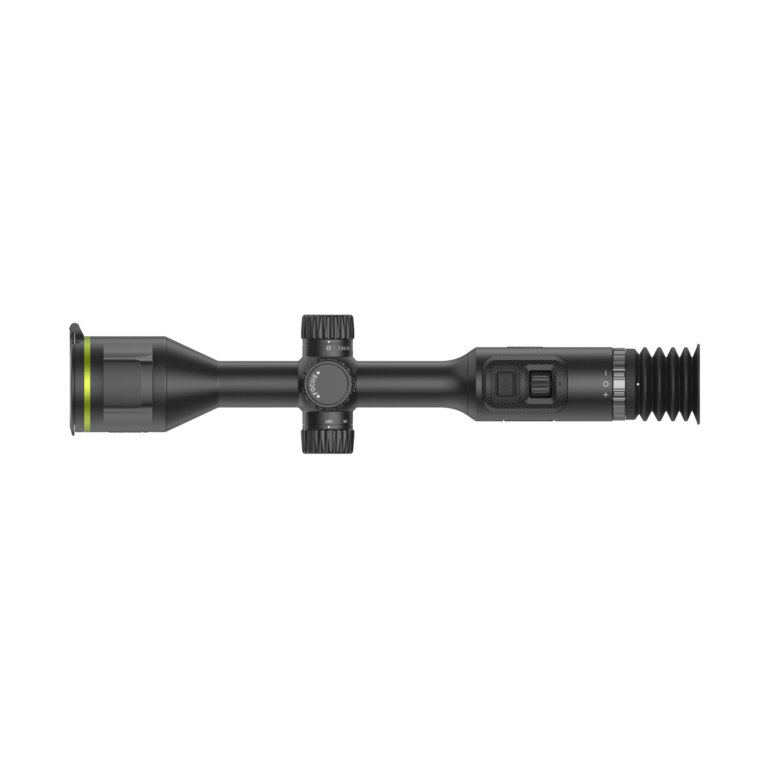

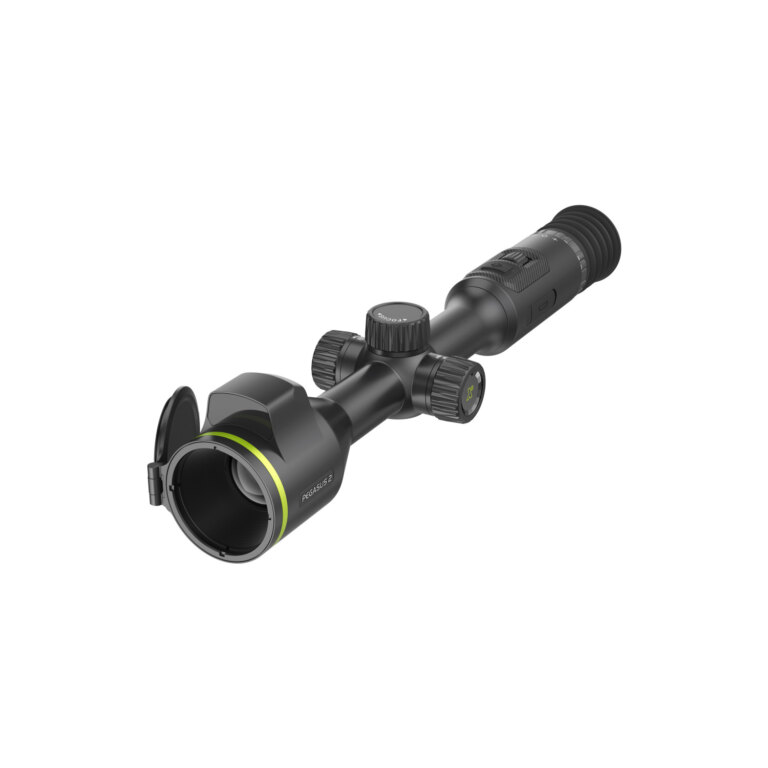

Pixfra® Pegasus 2 P635 LRF Thermal Riflescope

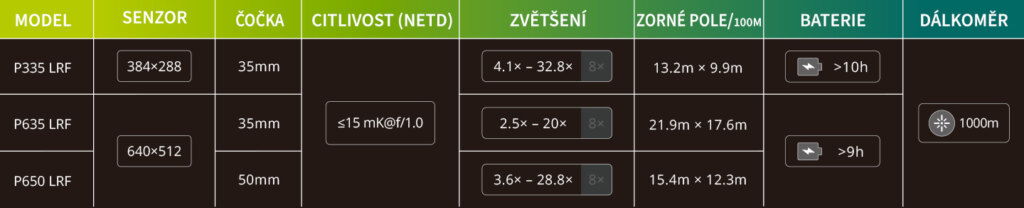

The Pixfra Pegasus 2 P635 LRF is a thermal riflescope featuring an integrated laser rangefinder, ballistic calculator, and a conventional 30 mm tube for mounting in standard scope rings. Its 640 × 512 VOx thermal sensor, ≤15 mK NETD sensitivity, and 35 mm F1.0 objective lens provide a detailed thermal image with a wide field of view. Compared with the P335 LRF, the higher-resolution sensor delivers greater image detail and improved situational awareness.

640 × 512 Thermal Sensor

The Pegasus 2 P635 LRF uses an uncooled VOx thermal sensor with a resolution of 640 × 512 pixels, a 12 μm pixel pitch, an 8–14 μm spectral range, and NETD sensitivity of ≤15 mK at F1.0. The high-resolution sensor provides detailed rendering of heat signatures and helps distinguish fine temperature differences, particularly in low-contrast conditions.

Unlike image-intensifier night vision, thermal imaging detects differences in emitted heat and does not require ambient light or an infrared illuminator. It can therefore be used in complete darkness and in challenging conditions such as fog, smoke, rain, or partially obscuring vegetation.

35 mm F1.0 Objective Lens

The manually focused 35 mm F1.0 objective lens combines a base magnification of 2.5× with a field of view of 21.9 × 17.6 m at 100 m. This provides a broad view of the surrounding area for scanning open terrain, woodland edges, and other environments where rapid target detection and orientation are important. The maximum detection range is up to 1,800 m.

Integrated Laser Rangefinder and Ballistic Calculator

The integrated Class 1 laser rangefinder measures distances out to 1,000 m with an accuracy of ±1 m. Direct ranging through the riflescope makes distance assessment faster and eliminates the need to operate a separate handheld rangefinder.

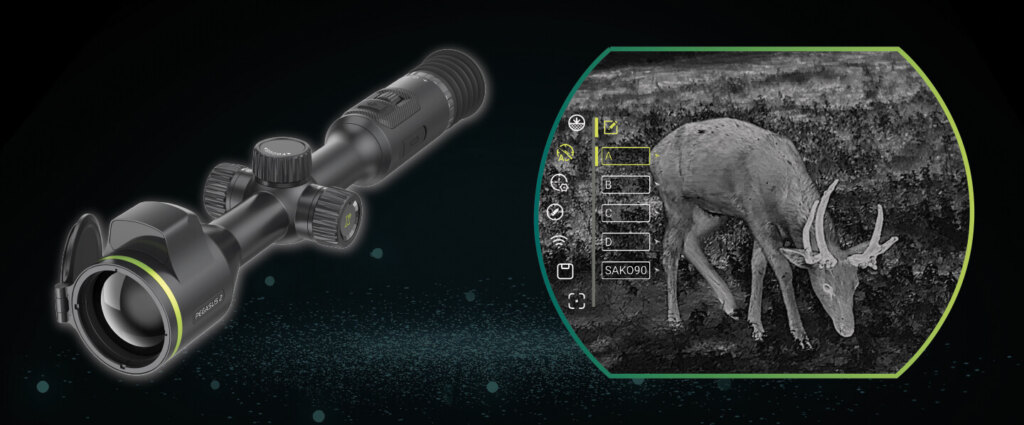

The built-in ballistic calculator works with multiple reticle styles and colors and supports five zeroing profiles. This allows the riflescope to be configured for different firearms, ammunition types, or zero distances.

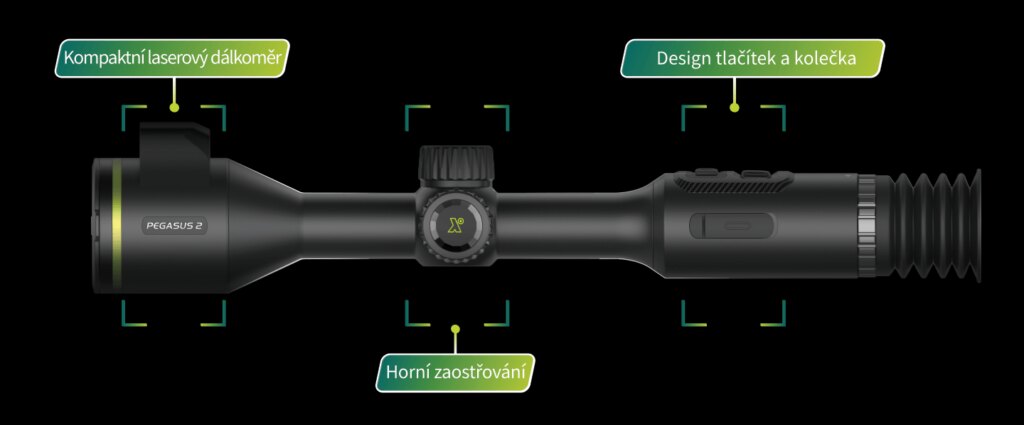

Conventional 30 mm Tube

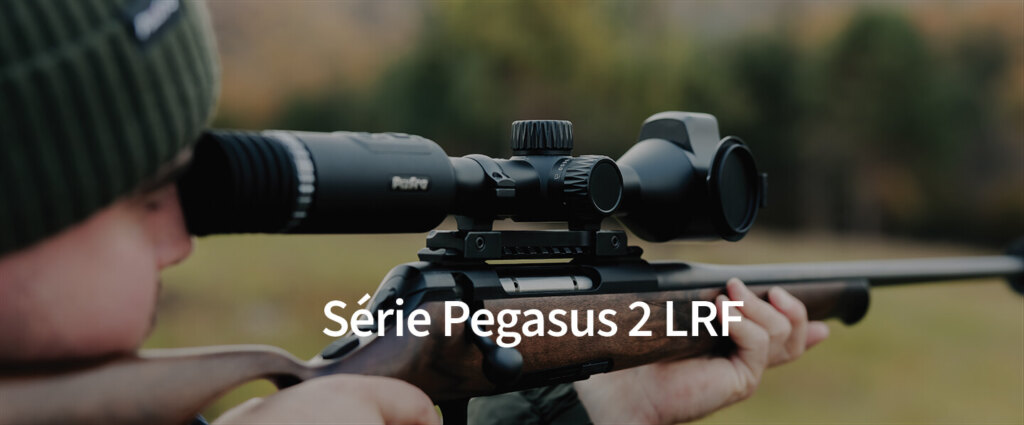

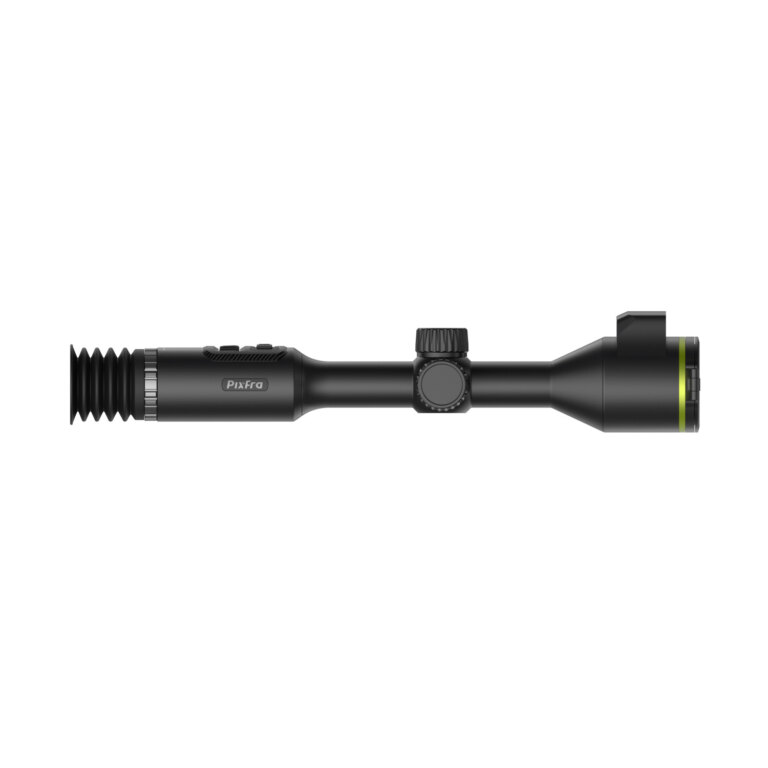

The Pegasus 2 P635 LRF uses a conventional riflescope-style housing with a 30 mm main tube, allowing installation in compatible standard scope rings without a proprietary mounting system. The familiar layout is well suited to shooters accustomed to traditional daytime optics.

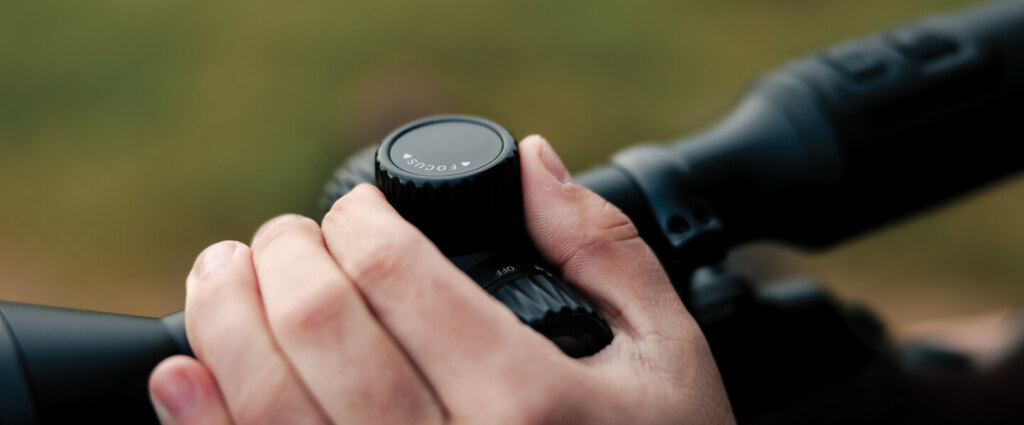

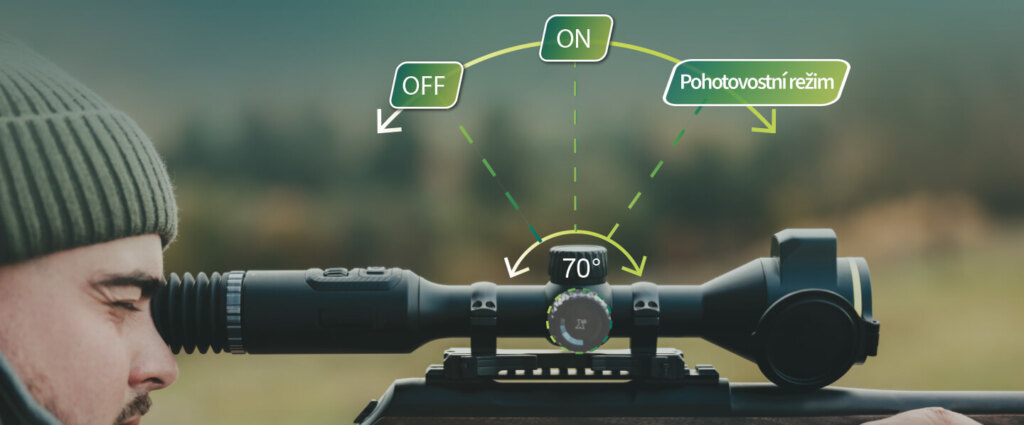

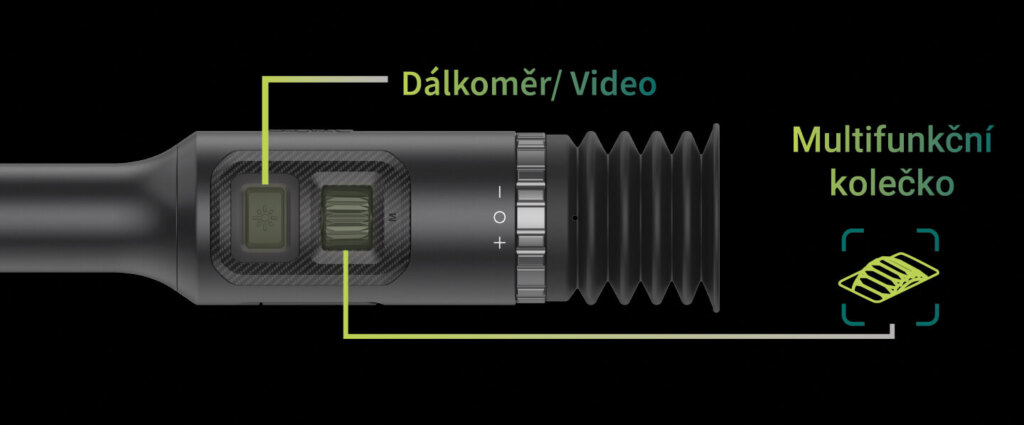

Manual focus and the combination of a rotary control and buttons provide direct access to the riflescope's primary functions, including power, standby mode, menu navigation, and image adjustment.

High-Resolution OLED Display

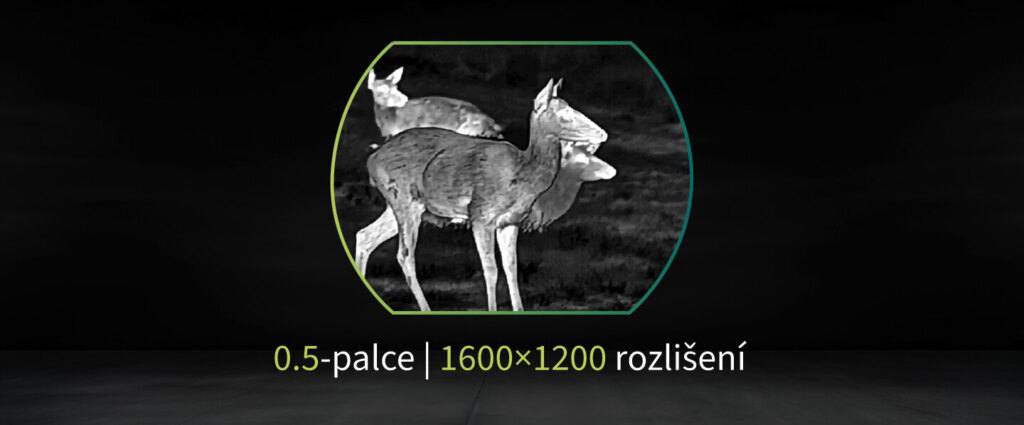

The thermal image is displayed on a 0.5-inch OLED screen with a resolution of 1600 × 1200 pixels. Six color palettes are available: White Hot, Black Hot, Iron Red, Alarm, Green Hot, and Sepia. The different display modes allow the image presentation to be adapted to varying terrain, weather, and personal preference.

Pixfra PIPS 3.0 image-processing technology enhances contrast, detail, and overall image readability, helping maintain a usable thermal image when the temperature difference between the target and its surroundings is limited.

Recording and Field Functions

The riflescope supports photo capture, video recording with audio, an onboard gallery, a Wi-Fi hotspot, Picture-in-Picture mode, Hot Spot Tracking, standby mode, defective pixel correction, and automatic, semi-automatic, or manual flat-field correction.

Built-in 64 GB storage provides space for recorded photos and videos. Recoil-activated recording automatically saves a 30-second video clip covering approximately 15 seconds before and 15 seconds after the shot. Files can be reviewed or transferred through the Pixfra Outdoor app.

Dual-Battery Power System

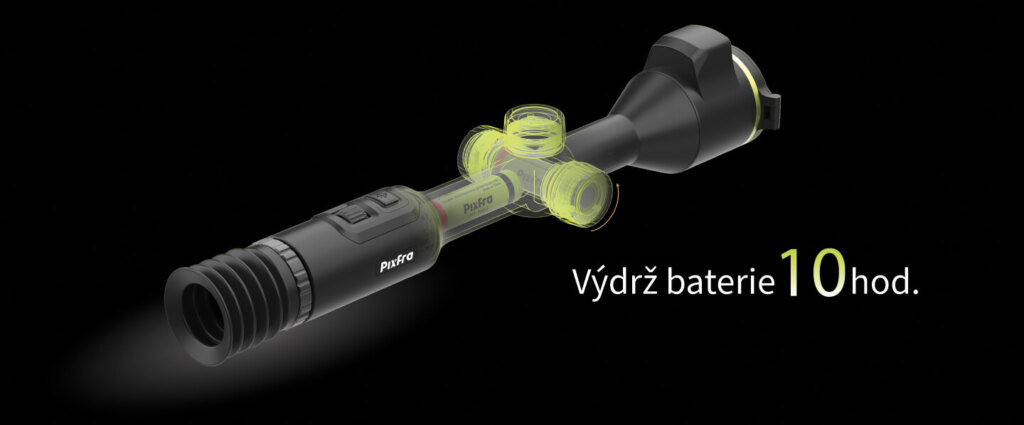

Power is supplied by one built-in rechargeable 18650 battery and one removable rechargeable 18650 battery. Together they provide at least 9 hours of battery life at 25 °C with Wi-Fi disabled. The riflescope can be charged or externally powered through its USB-C port using a 5 V DC power source.

Durable Magnesium Alloy Housing

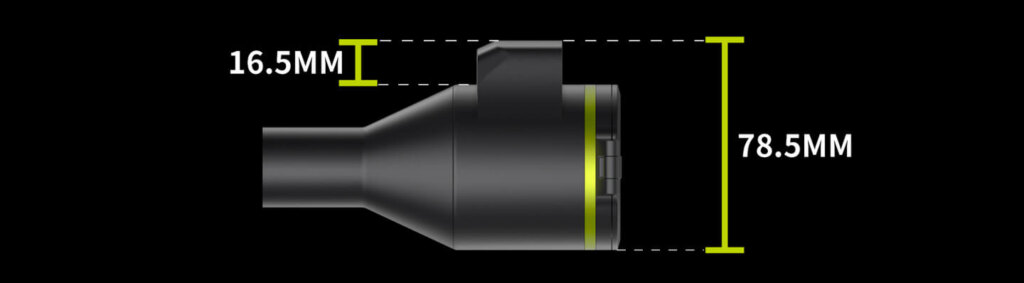

The magnesium alloy housing is rated IP67 for protection against dust and water. The riflescope operates in temperatures from -30 °C to +55 °C and withstands recoil forces of up to 1,000 g for 0.4 ms. It measures approximately 409 × 90 × 78.5 mm and weighs no more than 820 g.

Package Contents

The package includes the Pixfra Pegasus 2 P635 LRF thermal riflescope, two 18650 rechargeable batteries, a battery charger, a USB-C cable, five zeroing targets with thermal stickers, a cleaning cloth, a carry bag, and a user manual.

Benefits You Need to Know:

• 640 × 512 VOx thermal sensor
• 12 μm pixel pitch
• NETD sensitivity of ≤15 mK at F1.0
• 35 mm F1.0 objective lens with manual focus
• 2.5× base magnification
• field of view of 21.9 × 17.6 m at 100 m
• detection range of up to 1,800 m
• integrated laser rangefinder with a range of up to 1,000 m
• rangefinding accuracy of ±1 m
• integrated ballistic calculator
• five zeroing profiles
• multiple reticle styles and colors
• 0.5-inch OLED display with 1600 × 1200 resolution
• PIPS 3.0 image processing
• six thermal color palettes
• Picture-in-Picture mode and Hot Spot Tracking
• recoil-activated recording
• 64 GB of built-in storage
• Wi-Fi connectivity and Pixfra Outdoor app support
• 30 mm main tube for compatible standard scope rings
• built-in and removable 18650 batteries
• at least 9 hours of battery life
• magnesium alloy housing
• IP67-rated construction
• weight of no more than 820 g
