Discoveryopt® High Picatinny Scope Rings, 30 mm, 1.35″

Discoveryopt High 1.35″ Picatinny Scope Rings are designed for riflescopes with a 30 mm main tube. They mount on a MIL-STD-1913 Picatinny rail and are also compatible with the Weaver interface. The set comprises two separate rings CNC-machined from 6063-T6 aluminum alloy. Precision-finished inner surfaces provide uniform contact with the scope tube, while the hard-anodized finish increases resistance to wear.

For 30 mm Scope Tubes

These rings are designed for riflescopes with a 30 mm main tube. Their separate configuration allows the front and rear rings to be positioned independently according to the available mounting surface on the optic and the layout of the firearm’s rail.

Picatinny and Weaver Compatibility

The rings mount on a MIL-STD-1913 Picatinny rail and are also compatible with the Weaver interface. The rail profile and available mounting space should be checked before installation to ensure correct fit.

High 1.35″ Configuration

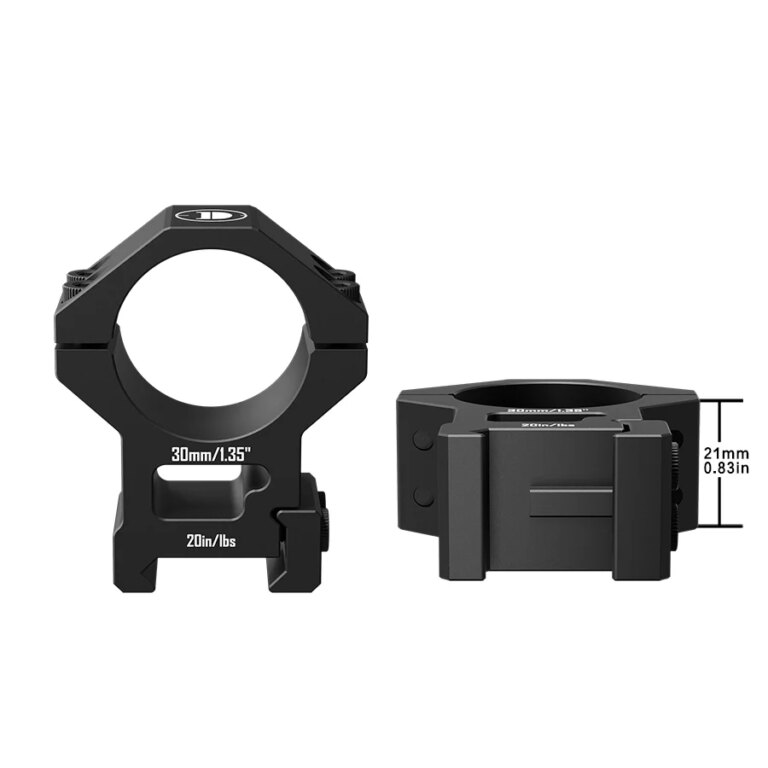

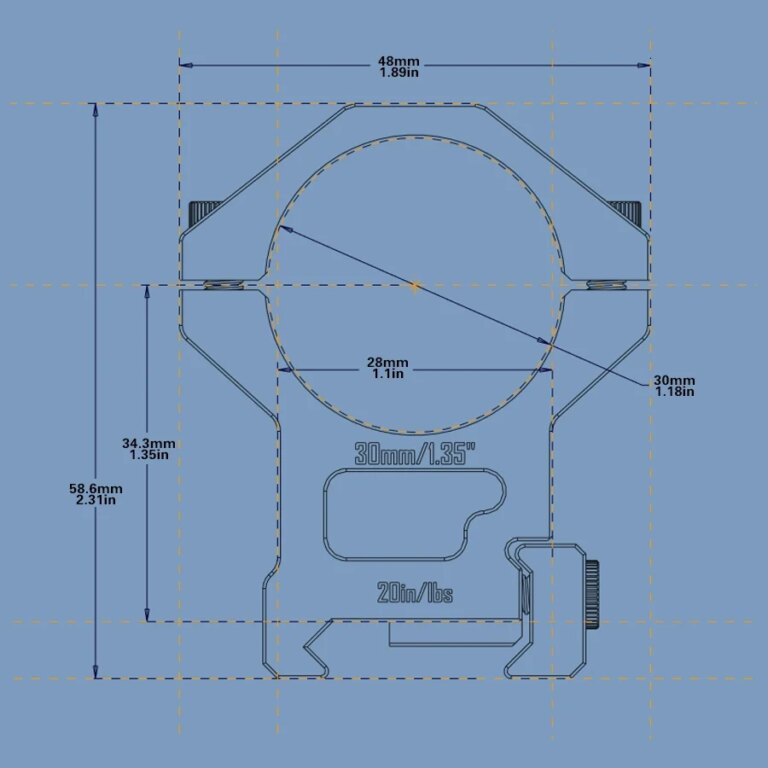

The High version has a height of 1.35″, approximately 34.3 mm. The elevated position provides additional clearance for riflescopes with larger objective housings. Compatibility should always be checked against the firearm, rail height, and external dimensions of the selected optic.

6063-T6 Aluminum Construction

The rings are CNC-machined from 6063-T6 aluminum alloy. Their hard-anodized finish increases surface hardness and resistance to wear. Precision-finished inner surfaces promote uniform contact and distribute clamping pressure evenly around the scope tube when correctly installed.

Specified Installation Torque

The mount uses a two-screw attachment system, and the recommended tightening torque of 18 in-lb, approximately 2 Nm, is laser-marked directly on the rings. The mount has a neutral 0 MOA cant. The manufacturer specifies coaxiality of ≤ 0.01 mm/m and resistance to shock loads of at least 1,000 G.

Key Features:

• designed for 30 mm scope tubes
• mounting on a MIL-STD-1913 Picatinny rail
• compatible with the Weaver interface
• High 1.35″ / approximately 34.3 mm configuration
• two separate scope rings
• 6063-T6 aluminum alloy
• CNC-machined construction
• hard-anodized finish
• precision-finished inner surfaces
• uniform pressure distribution around the scope tube
• two-screw attachment system
• laser-marked tightening torque of 18 in-lb / approximately 2 Nm
• neutral 0 MOA cant
• manufacturer-specified coaxiality of ≤ 0.01 mm/m
• rated for shock loads of at least 1,000 G
