Discoveryopt® High Dovetail Scope Rings, 1″, 1.35″

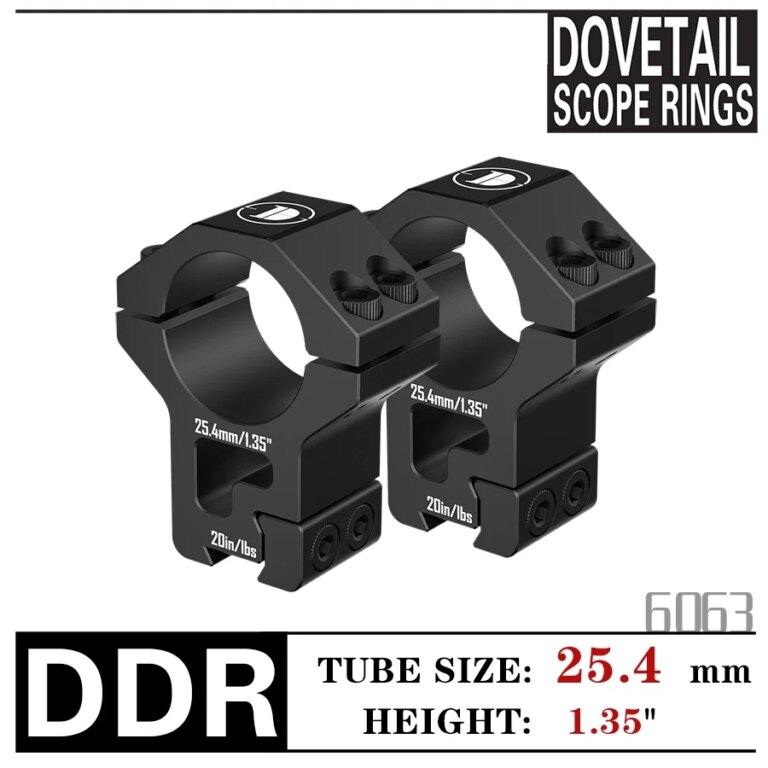

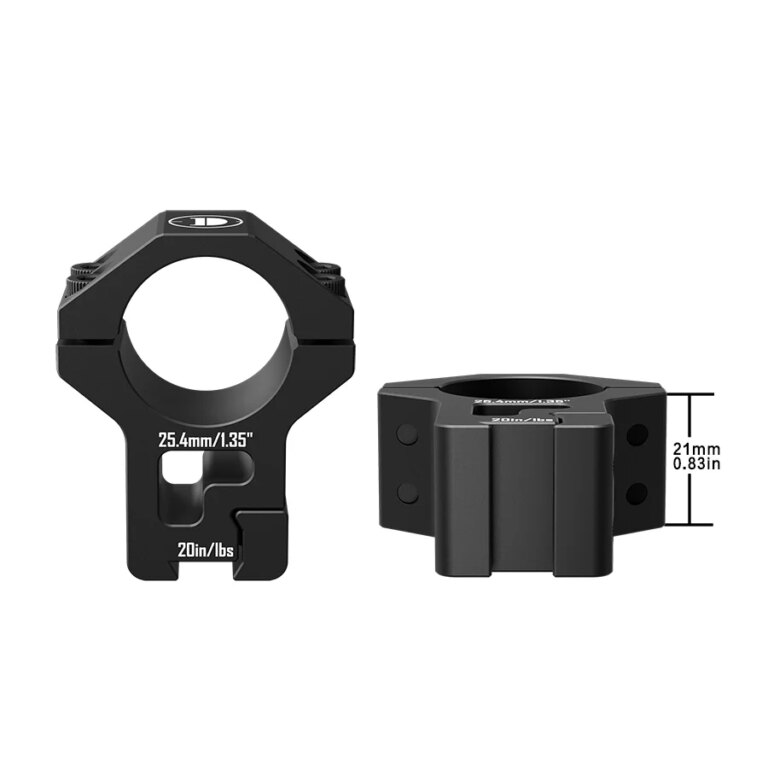

Discoveryopt High 1.35″ Dovetail Scope Rings are designed for riflescopes with a 1″ / 25.4 mm main tube. The set comprises two separate rings CNC-machined from 6063-T6 aluminum alloy and protected by a matte Type III hard-coat anodized finish. Precision-finished inner surfaces provide uniform contact with the scope tube, while the recommended tightening torque is laser-marked directly on the rings.

For 1″ Scope Tubes

These rings are designed for riflescopes with a 1″ / 25.4 mm main tube. Their separate configuration allows the front and rear rings to be positioned independently according to the available mounting surface on the optic and the layout of the firearm’s rail.

Designed for Dovetail Rails

The rings attach directly to a compatible dovetail rail. The width and profile of the dovetail should be checked before installation to ensure a correct fit with the firearm.

High 1.35″ Configuration

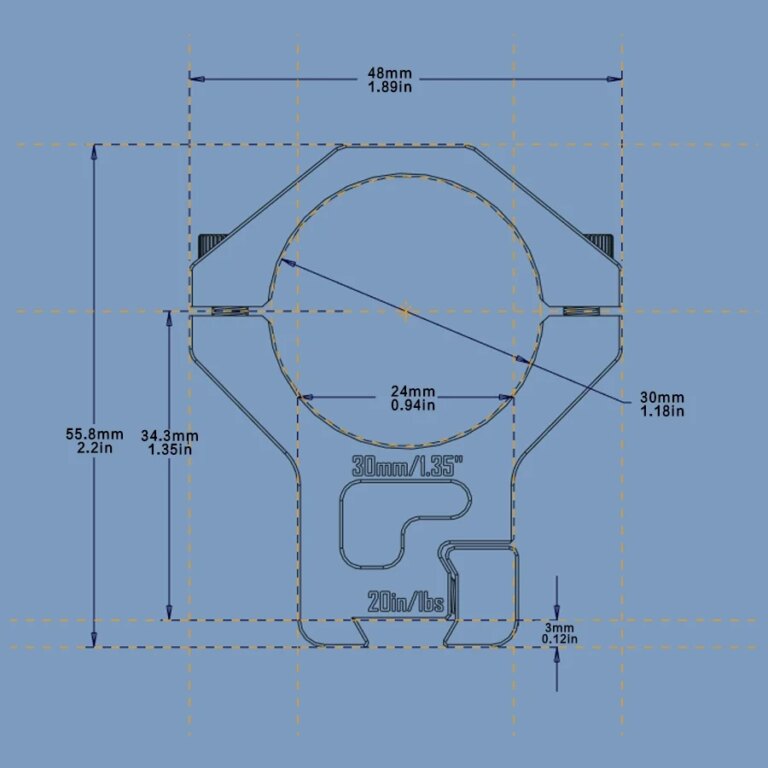

The manufacturer classifies this model as a High mount with a height of 1.35″, approximately 34.3 mm. The elevated position provides additional clearance for riflescopes with larger objective housings. Compatibility should always be checked against the firearm, rail height, and external dimensions of the selected optic.

6063-T6 Aluminum Construction

The rings are CNC-machined from 6063-T6 aluminum alloy. Their matte Type III hard-coat anodized finish increases resistance to scratches, wear, and corrosion. Precision-finished inner surfaces promote uniform contact and distribute clamping pressure evenly around the scope tube when correctly installed.

Specified Installation Torque

The mount uses a two-screw clamping system. The recommended tightening torque of 18 in-lb, approximately 2 Nm, is laser-marked directly on the rings. The mount has a neutral 0 MOA cant. The manufacturer specifies coaxiality of ≤ 0.01 mm/m and resistance to shock loads of at least 1,000 G.

Key Features:

• designed for 1″ / 25.4 mm scope tubes
• mounting on a compatible dovetail rail
• High 1.35″ / approximately 34.3 mm configuration
• two separate scope rings
• 6063-T6 aluminum alloy
• CNC-machined construction
• matte Type III hard-coat anodized finish
• precision-finished inner surfaces
• uniform pressure distribution around the scope tube
• two-screw clamping system
• laser-marked tightening torque of 18 in-lb / approximately 2 Nm
• neutral 0 MOA cant
• manufacturer-specified coaxiality of ≤ 0.01 mm/m
• rated for shock loads of at least 1,000 G
